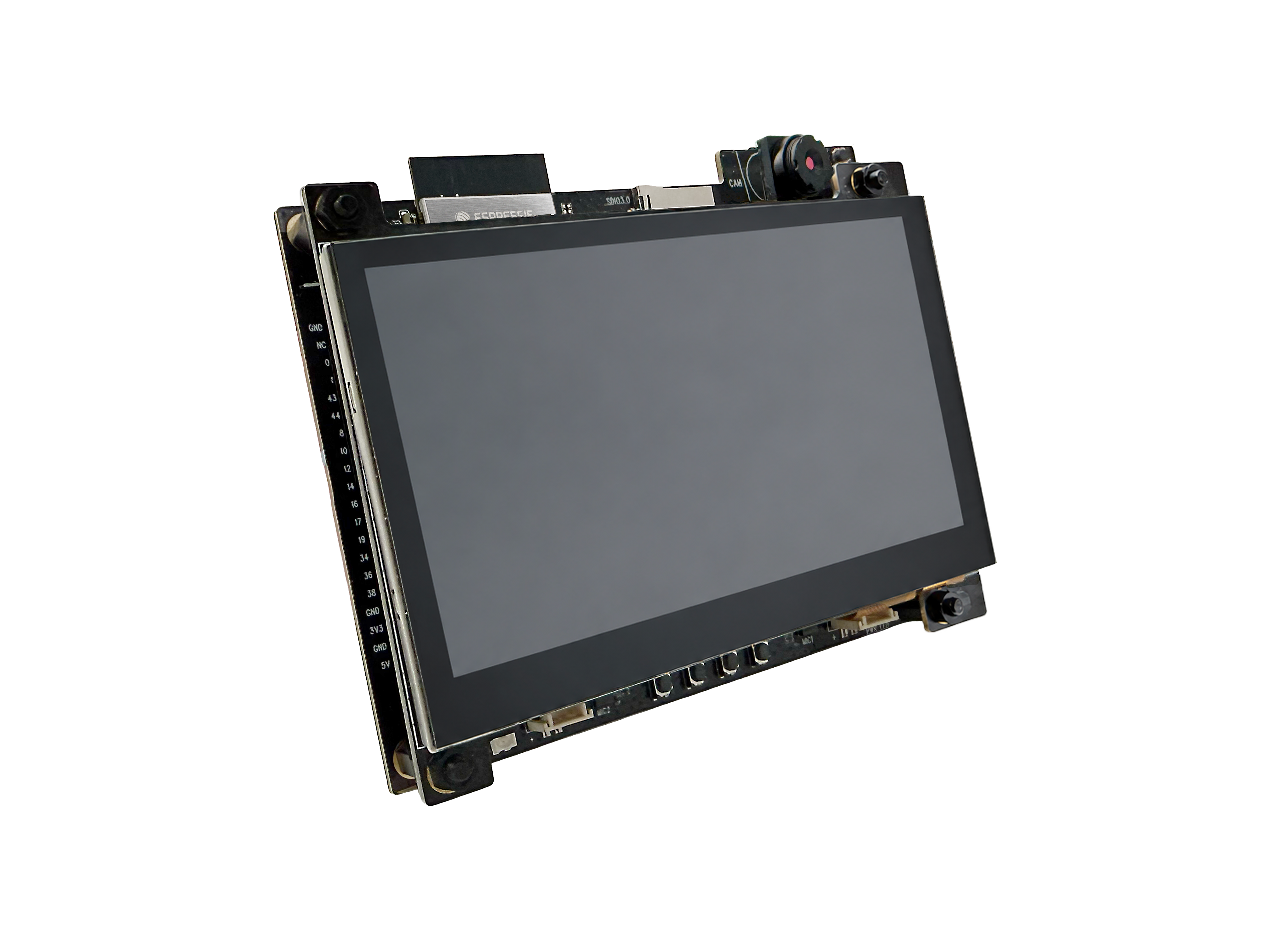

ESP32-S31-Korvo-1 V1.1

[中文]

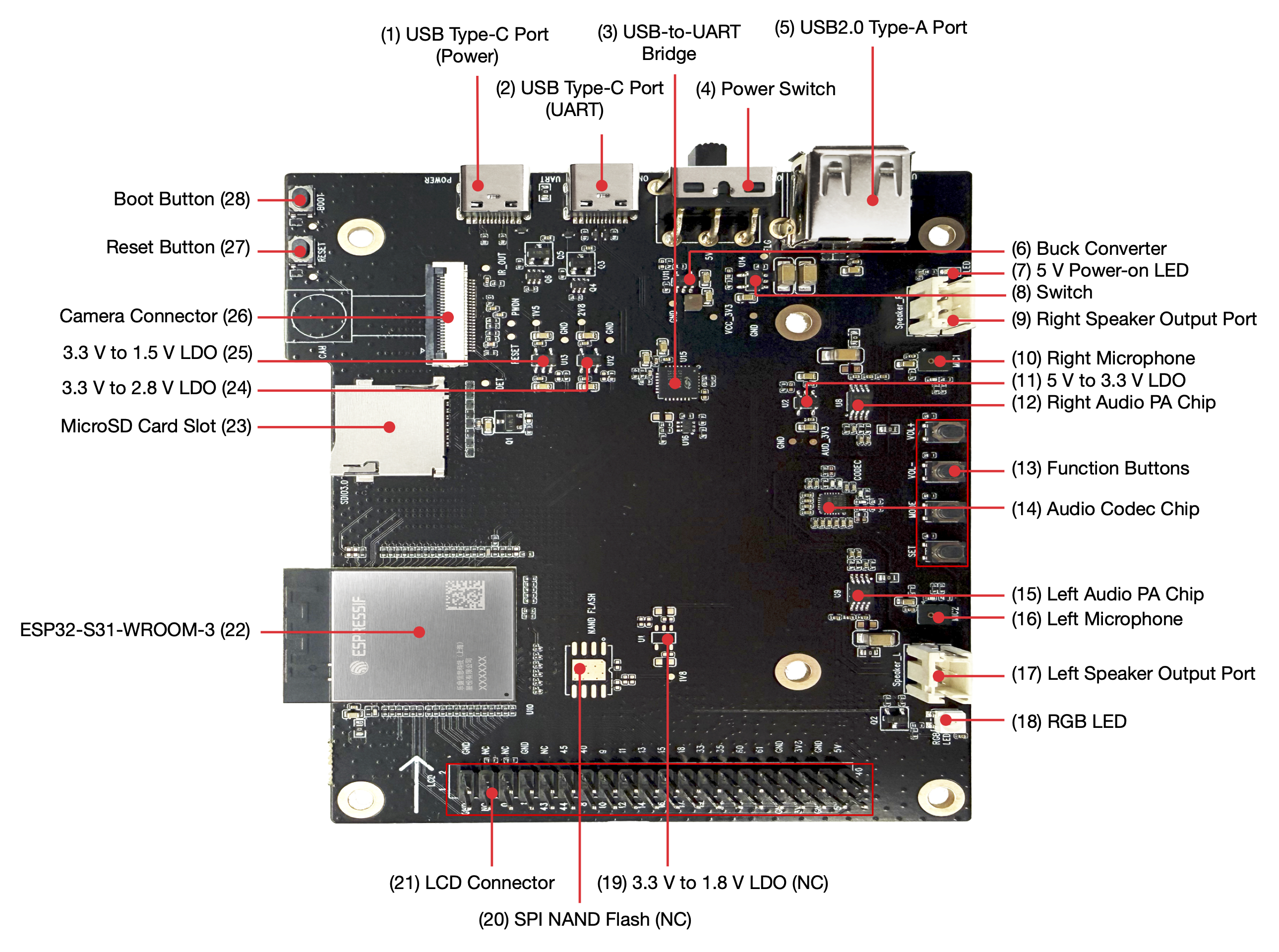

Multimedia board for smart audio and HMI. Onboard capabilities include: Dual microphones, ES8389, 4.3-inch LCD, touch, DVP camera (OV3660 / SC101IOT), microSD, WS2812, GPIO boot button.

Onboard Capabilities

• Dual microphones, ES8389, 4.3-inch LCD, touch, DVP camera (OV3660 / SC101IOT), microSD, WS2812, GPIO boot button

Hardware User Guide

The complete hardware guide is available at ESP32-S31-Korvo-1.

BMGR Configuration

The board definition is in esp_boards/esp32_s31_korvo_1.

The board default sdkconfig enables both CONFIG_CAMERA_OV3660 and CONFIG_CAMERA_SC101IOT. Either module can be populated on the same DVP connector; esp_video auto-detects it at runtime.

---
