ESP32-C5-DevKitC-1
This user guide will help you get started with ESP32-C5-DevKitC-1 and will also provide more in-depth information.
The ESP32-C5-DevKitC-1 is an entry-level development board based on the general-purpose module ESP32-C5-WROOM-1. This board integrates complete Wi-Fi, Bluetooth (LE), Zigbee, and Thread functions.
Most of the I/O pins are broken out to the pin headers on both sides for easy interfacing. Developers can either connect peripherals with jumper wires or mount ESP32-C5-DevKitC-1 on a breadboard.
ESP32-C5-DevKitC-1
The document consists of the following major sections:
Getting Started: Overview of ESP32-C5-DevKitC-1 and hardware/software setup instructions to get started.
Hardware Reference: More detailed information about the ESP32-C5-DevKitC-1’s hardware.
Hardware Revision Details: Information about revision history, known issues, and links to user guides for previous versions (if any).
Related Documents: Links to related documentation.
Getting Started
This section provides a brief introduction to ESP32-C5-DevKitC-1, introducing how to perform the initial hardware setup and how to flash firmware onto the board.
Description of Components

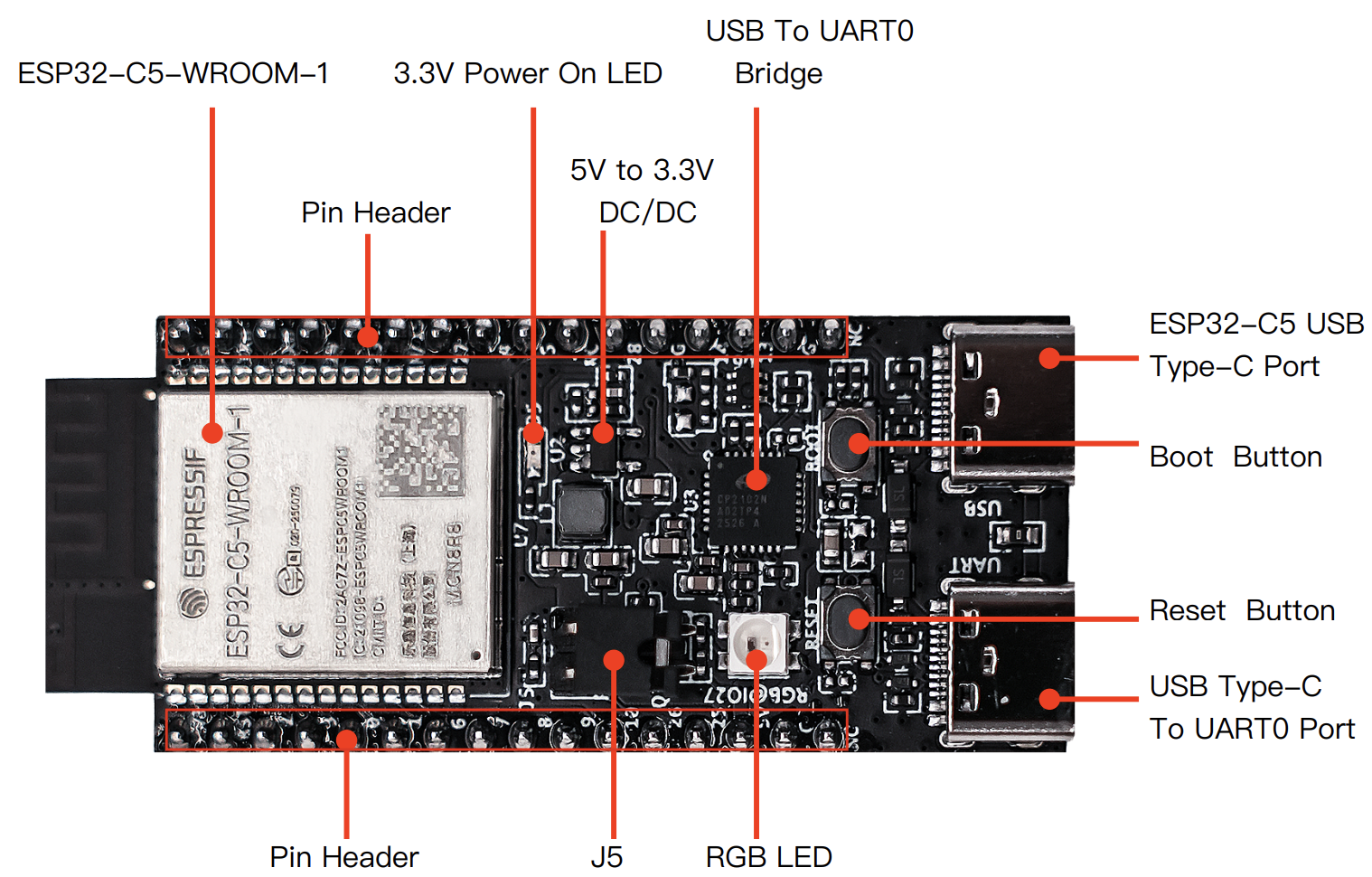

ESP32-C5-DevKitC-1 - front
The following list psrovides a description of the key components on the board in a clockwise direction.
Key Component |
Description |
|---|---|
ESP32-C5-WROOM-1 |
ESP32-C5-WROOM-1 is a general-purpose module supporting Wi-Fi 6 in 2.4 & 5 GHz dual-band (802.11ax), Bluetooth® 5 (LE), Zigbee, and Thread (802.15.4) with on-board PCB antenna. |
Pin Header |
All available GPIO pins (except for the SPI bus for flash) are broken out to the pin headers on the board. |
5 V to 3.3 V DC/DC |
Power regulator that converts a 5 V supply into a 3.3 V output. |
3.3 V Power On LED |
Turns on when the the board is connected to USB power. |
USB-to-UART Bridge |
Single-chip USB-to-UART bridge offering transfer rate up to 3 Mbps. |
ESP32-C5 USB Type-C Port |
The USB Type-C port on the ESP32-C5 chip supports USB 2.0 full speed, with a data transfer rate of up to 12 Mbps. Note that this port does not support the 480 Mbps high-speed transfer mode. This port is used for power supply to the board, flashing applications to the chip, and communication with the chip via USB protocols, as well as for JTAG debugging. |
Boot Button |
Download button. Holding down Boot and then pressing Reset initiates Firmware Download mode for downloading firmware through the serial port. |
Reset Button |
Press this button to restart the system. |
USB Type-C to UART Port |
Used for power supply to the board, flashing applications to the chip, as well as communication with chip ESP32-C5 via the on-board USB-to-UART bridge. |
RGB LED |
Addressable RGB LED, driven by GPIO27. |
J5 |
Used for current measurement. See details in Section Current Measurement. |
Start Application Development
Before powering up your ESP32-C5-DevKitC-1, please make sure that it is in good condition with no obvious sign of damage.
Required Hardware
ESP32-C5-DevKitC-1
USB-A to USB-C cable
Computer running Windows, Linux, or macOS
Note
Be sure to use a good quality USB cable. Some cables are for charging only and do not provide the needed data lines nor work for programming the boards.
Software Setup
Please proceed to ESP-IDF Get Started, which will help you set up the development environment quickly and then flash an application example onto your board.
Contents and Packaging
Retail orders
If you order a few samples, each ESP32-C5-DevKitC-1 comes in an individual package in either an antistatic bag or any other packaging depending on your retailer.
For retail orders, please go to https://www.espressif.com/en/company/contact/buy-a-sample.
Wholesale Orders
If you order in bulk, the boards come in large cardboard boxes.
For wholesale orders, please go to https://www.espressif.com/en/contact-us/sales-questions.
Hardware Reference
Block Diagram
The block diagram below shows the components of ESP32-5-DevKitC-1 and their interconnections.
ESP32-C5-DevKitC-1 (click to enlarge)
Power Supply Options
There are three mutually exclusive ways to provide power to the board:
USB Type-C to UART port and ESP32-C5 USB Type-C port (either one or both), default power supply (recommended)
5V and GND pin headers
3V3 and GND pin headers
Current Measurement
The J5 headers on ESP32-C5-DevKitC-1 (see J5 in Figure ESP32-C5-DevKitC-1 - front) can be used for measuring the current drawn by the ESP32-C5-WROOM-1 module:
Remove the jumper: Power supply between the module and peripherals on the board is cut off. To measure the module’s current, connect the board with an ammeter via J5 headers.
Apply the jumper (factory default): Restore the board’s normal functionality.
Note
When using 3V3 and GND pin headers to power the board, please remove the J5 jumper, and connect an ammeter in series between the external power supply and the 3V3 pin header to measure the module’s current. This is because the 3V3 pin header supplies power directly to the module, bypassing the J5 headers. Removing the J5 jumper disconnects unnecessary circuits, allowing for a more accurate measurement of the module’s current.
Header Block
The two tables below provide the Name and Function of the pin headers on both sides of the board (J1 and J3). The pin header names are shown in Figure ESP32-C5-DevKitC-1 - front. The numbering is the same as in the ESP32-C5-DevKitC-1 Schematic (PDF).
J1
No. |
Name |
Type 1 |
Function |
|---|---|---|---|
1 |
3V3 |
P |
3.3 V power supply |
2 |
RST |
I |
High: enables the chip; Low: disables the chip. |
3 |
2 |
I/O/T |
MTMS 3, GPIO2, LP_GPIO2, LP_UART_RTSN, ADC1_CH1, FSPIQ |
4 |
3 |
I/O/T |
MTDI, GPIO3, LP_GPIO3, LP_UART_CTSN, ADC1_CH2 |
5 |
4 |
I/O/T |
MTCK, GPIO4, LP_GPIO4, LP_UART_RXD, ADC1_CH3, FSPIHD |
6 |
5 |
I/O/T |
MTDO, GPIO5, LP_GPIO5, LP_UART_TXD, ADC1_CH4, FSPIWP |
7 |
0 |
I/O/T |
GPIO0, XTAL_32K_P, LP_GPIO0, LP_UART_DTRN |
8 |
1 |
I/O/T |
GPIO1, XTAL_32K_N, LP_GPIO1, LP_UART_DSRN, ADC1_CH0 |
9 |
27 |
I/O/T |
|
10 |
6 |
I/O/T |
GPIO6, LP_GPIO6, LP_I2C_SDA, ADC1_CH5, FSPICLK |
11 |
7 |
I/O/T |
GPIO7 3, LP_GPIO7, LP_I2C_SCL, FSPID |
12 |
26 |
I/O/T |
GPIO26 |
13 |
25 |
I/O/T |
GPIO25 |
14 |
5V |
P |
5 V power supply |
15 |
G |
G |
Ground |
16 |
NC |
– |
No connection |
J3
No. |
Name |
Type |
Function |
|---|---|---|---|
1 |
G |
G |
Ground |
2 |
TX |
I/O/T |
U0TXD, GPIO11 |
3 |
RX |
I/O/T |
U0RXD, GPIO12 |
4 |
24 |
I/O/T |
GPIO24 |
5 |
23 |
I/O/T |
GPIO23 |
6 |
NC/15 |
I/O/T |
No connection/GPIO15 4 |
7 |
10 |
I/O/T |
GPIO10, FSPICS0 |
8 |
9 |
I/O/T |
GPIO9, PAD_COMP1 |
9 |
8 |
I/O/T |
GPIO8, PAD_COMP0 |
10 |
NC |
– |
No connection |
11 |
28 |
I/O/T |
GPIO28 3 |
12 |
G |
G |
Ground |
13 |
14 |
I/O/T |
GPIO14, USB_D+ |
14 |
13 |
I/O/T |
GPIO13, USB_D- |
15 |
G |
G |
Ground |
16 |
NC |
– |
No connection |
- 1
P: Power supply; I: Input; O: Output; T: High impedance.
- 2
Used to drive the RGB LED.
- 3(1,2,3,4)
MTMS, GPIO7, GPIO27, and GPIO28 are strapping pins of the ESP32-C5 chip. These pins are used to control several chip functions depending on binary voltage values applied to the pins during chip power-up or system reset.
- 4
In modules integrated with SPI SPRAM, this pin is already used for SPICS1 function, thus unavailable for external use. In modules without SPI PSRAM, this pin can be used as GPIO15.
Pin Layout
ESP32-C5-DevKitC-1 Pin Layout (click to enlarge)
Hardware Revision Details
This is the first revision of this board released.
