ESP32-PICO-DevKitM-2

[中文]

Overview

ESP32-PICO-DevKitM-2 is an ESP32-based development board produced by Espressif.

The core of this board is ESP32-PICO-MINI-02(02U) module with complete Wi-Fi and Bluetooth functionalities. The development board features a USB-to-UART Bridge circuit which allows developers to connect the board to a computer’s USB port for flashing and debugging.

All the IO signals and system power on ESP32-PICO-MINI-02(02U) are led out to two rows of 18 x 0.1” header pads on both sides of the development board for easy access. For compatibility with Dupont wires, all header pads are populated with two rows of male pin headers.

Note

ESP32-PICO-DevKitM-2 comes with male headers by default.

ESP32-PICO-DevKitM-2 provides the users with hardware for development of applications based on the ESP32, making it easier for users to explore ESP32 functionalities.

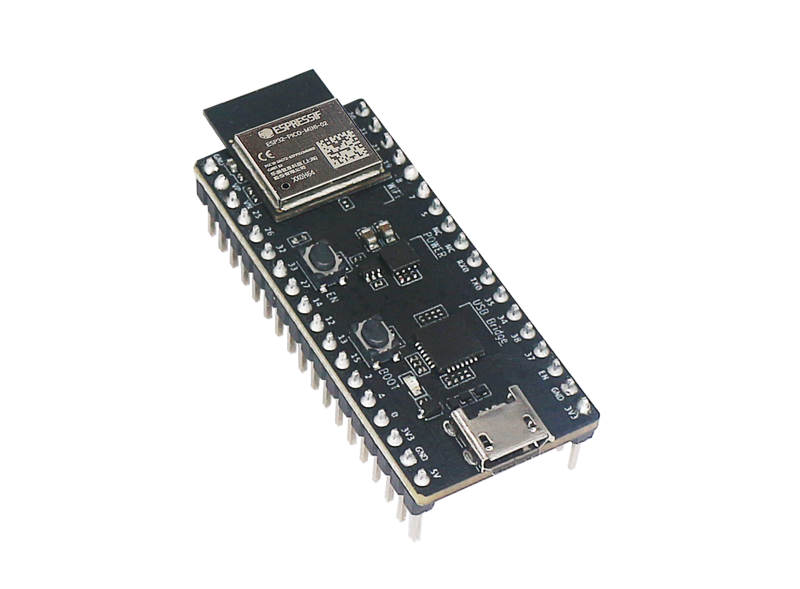

ESP32-PICO-DevKitM-2 (click to enlarge)

ESP32-PICO-DevKitM-2 Overview (click to enlarge)

This guide covers:

  • Getting Started: Provides an overview of the ESP32-PICO-DevKitM-2 and software setup instructions to get started.

  • Contents and Packaging: Provides information about packaging and contents for retail and wholesale orders.

  • Hardware Reference: Provides more detailed information about the ESP32-PICO-DevKitM-2’s hardware.

  • Hardware Revision Details: Covers revision history, known issues, and links to user guides for previous versions (if any) of the ESP32-PICO-DevKitM-2.

  • Related Documents: Gives links to related documentation.

Getting Started

This section describes how to get started with the ESP32-PICO-DevKitM-2. It begins with a few introductory sections about the ESP32-PICO-DevKitM-2, then Section Start Application Development provides instructions on how to flash firmware onto the ESP32-PICO-DevKitM-2.

Description of Components

The following figure and the table below describe the key components, interfaces, and controls of the ESP32-PICO-DevKitM-2 board. We take the board with a ESP32-PICO-MINI-02 module as an example in the following sections.

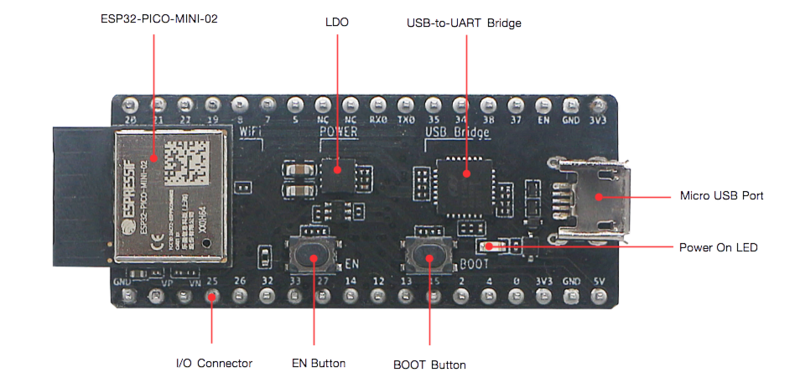

ESP32-PICO-DevKitM-2 (click to enlarge)

ESP32-PICO-DevKitM-2 board layout - front (click to enlarge)

Below is the description of the items identified in the figure starting from the top left corner and going clockwise.

Key Component

Description

ESP32-PICO-MINI-02

Standard ESP32-PICO-MINI-02 module soldered to the ESP32-PICO-DevKitM-2 board. The complete ESP32 system on a chip (ESP32 SoC) has been integrated into the module. Users can also select the board with ESP32-PICO-MINI-02U soldered.

LDO

5V-to-3.3V Low dropout voltage regulator (LDO).

USB-to-UART bridge

CP2102N, single-chip USB-UART bridge that offers up to 3 Mbps transfers rates.

Micro-B USB Port

USB interface. Power supply for the board as well as the communication interface between a computer and the board.

5V Power On LED

This red LED turns on when power is supplied to the board. For details, see the schematic in Related Documents.

I/O Connector

All the pins on ESP32-PICO-MINI-02 are broken out to pin headers. You can program ESP32 to enable multiple functions, such as PWM, ADC, DAC, I2C, I2S, SPI, etc. For details, please see Section Pin Descriptions.

BOOT Button

Download button. Holding down Boot and then pressing EN initiates Firmware Download mode for downloading firmware through the serial port.

EN Button

Reset button.

Start Application Development

Before powering up your ESP32-PICO-DevKitM-2, please make sure that the board is in good condition with no obvious signs of damage.

Required Hardware

  • 1 x ESP32-PICO-DevKitM-2

  • 1 x USB 2.0 A to Micro B cable

  • 1 x Computer running Windows, Linux, or macOS

Software Setup

Please proceed to Get Started, where Section Installation Step by Step will quickly help you set up the development environment.

Contents and Packaging

Retail Orders

If you order one or several samples of the board, each ESP32-PICO-DevKitM-2 development board comes in an individual package.

For retail orders, please go to https://www.espressif.com/en/company/contact/buy-a-sample.

Wholesale Orders

If you order in bulk, the boards come in large cardboard boxes.

For wholesale orders, please go to https://www.espressif.com/en/contact-us/sales-questions.

Hardware Reference

Block Diagram

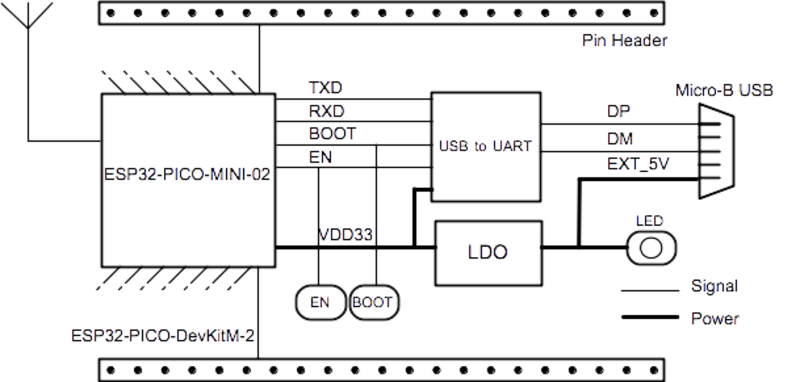

The block diagram below shows the main components of ESP32-PICO-DevKitM-2 and their interconnections.

ESP32-PICO-DevKitM-2 (click to enlarge)

ESP32-PICO-DevKitM-2 Block Diagram (click to enlarge)

Power Supply Options

There are three mutually exclusive ways to provide power to the board:

  • Micro USB port, default power supply

  • 5V/GND header pins

  • 3V3/GND header pins

Warning

The power supply must be provided using one and only one of the options above, otherwise the board and/or the power supply source can be damaged.

Pin Descriptions

The two tables below provide the Name and Function of I/O header pins on both sides of the board, see Description of Components. The pin numbering and header names are the same as in the schematic given in Related Documents.

Header J2

No.

Name

Type

Function

1

IO20

I/O

GPIO20

2

IO21

I/O

GPIO21, VSPIHD, EMAC_TX_EN

3

IO22

I/O

GPIO22, VSPIWP, U0RTS, EMAC_TXD1

4

IO19

I/O

GPIO19, VSPIQ, U0CTS, EMAC_TXD0

5

IO8

I/O

GPIO8, SD_DATA1, HS1_DATA1, U2CTS

6

IO7

I/O

GPIO7, SD_DATA0, HS1_DATA0, U2RTS

7

IO5

I/O

GPIO5, VSPICS0, HS1_DATA6, EMAC_RX_CLK

8

NC

-

NC

9

NC

-

NC

10

RXD0

I/O

GPIO3, U0RXD (See 1), CLK_OUT2

11

TXD0

I/O

GPIO1, U0TXD (See 1), CLK_OUT3, EMAC_RXD2

12

IO35

I

ADC1_CH7, RTC_GPIO5

13

IO34

I

ADC1_CH6, RTC_GPIO4

14

IO38

I

GPIO38, ADC1_CH2, RTC_GPIO2

15

IO37

I

GPIO37, ADC1_CH1, RTC_GPIO1

16

EN

I

CHIP_PU

17

GND

P

Ground

18

VDD33 (3V3)

P

3.3 V power supply

Header J3

No.

Name

Type

Function

1

GND

P

Ground

2

SENSOR_VP (FSVP)

I

GPIO36, ADC1_CH0, RTC_GPIO0

3

SENSOR_VN (FSVN)

I

GPIO39, ADC1_CH3, RTC_GPIO3

4

IO25

I/O

GPIO25, DAC_1, ADC2_CH8, RTC_GPIO6, EMAC_RXD0

5

IO26

I/O

GPIO26, DAC_2, ADC2_CH9, RTC_GPIO7, EMAC_RXD1

6

IO32

I/O

32K_XP (See 2a), ADC1_CH4, TOUCH9, RTC_GPIO9

7

IO33

I/O

32K_XN (See 2b), ADC1_CH5, TOUCH8, RTC_GPIO8

8

IO27

I/O

GPIO27, ADC2_CH7, TOUCH7, RTC_GPIO17, EMAC_RX_DV

9

IO14

I/O

ADC2_CH6, TOUCH6, RTC_GPIO16, MTMS, HSPICLK, HS2_CLK, SD_CLK, EMAC_TXD2

10

IO12

I/O

ADC2_CH5, TOUCH5, RTC_GPIO15, MTDI (See 3), HSPIQ, HS2_DATA2, SD_DATA2, EMAC_TXD3

11

IO13

I/O

ADC2_CH4, TOUCH4, RTC_GPIO14, MTCK, HSPID, HS2_DATA3, SD_DATA3, EMAC_RX_ER

12

IO15

I/O

ADC2_CH3, TOUCH3, RTC_GPIO13, MTDO, HSPICS0, HS2_CMD, SD_CMD, EMAC_RXD3

13

IO2

I/O

ADC2_CH2, TOUCH2, RTC_GPIO12, HSPIWP, HS2_DATA0, SD_DATA0

14

IO4

I/O

ADC2_CH0, TOUCH0, RTC_GPIO10, HSPIHD, HS2_DATA1, SD_DATA1, EMAC_TX_ER

15

IO0

I/O

ADC2_CH1, TOUCH1, RTC_GPIO11, CLK_OUT1, EMAC_TX_CLK

16

VDD33 (3V3)

P

3.3V power supply

17

GND

P

Ground

18

EXT_5V (5V)

P

5V power supply

The following notes give more information about the items in the tables above.

  1. This pin is connected to the pin of the USB bridge chip on the board.

  2. 32.768 kHz crystal oscillator: a) input b) output

  3. The operating voltage of ESP32-PICO-DevKitM-2’s embedded SPI flash is 3.3 V. Therefore, the strapping pin MTDI should be pulled down during the module power-on reset. If connected, please make sure that this pin is not held up on reset.

Pin Layout

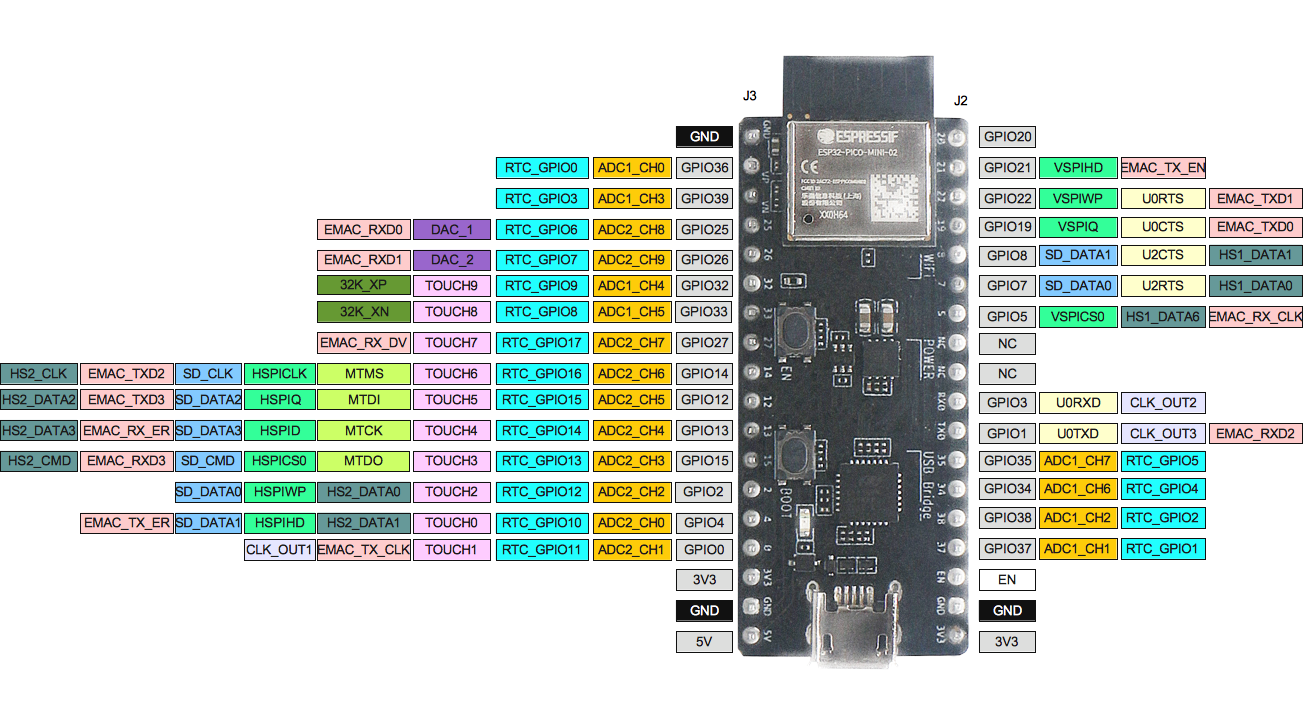

ESP32-PICO-DevKitM-2 (click to enlarge)

ESP32-PICO-DevKitM-2 Pin Layout (click to enlarge)

Hardware Revision Details

No previous versions available.
