I2C

An I2C (Inter-Integrated Circuit) bus can be used for communication with several external devices connected to the same bus as ESP32. There are two I2C controllers on board of the ESP32, each of which can be set to master mode or slave mode.

Overview

The following sections will walk you through typical steps to configure and operate the I2C driver:

  1. Configure Driver - select driver’s parameters like master or slave mode, set specific GPIO pins to act as SDA and SCL, set the clock speed, etc.
  2. Install Driver- activate driver in master or slave mode to operate on one of the two I2C controllers available on ESP32.
  3. Run Communication:
    1. Master Mode - run communication acting as a master
    2. Slave Mode - get slave responding to messages from the master
  4. Interrupt Handling - configure and service I2C interrupts.
  5. Going Beyond Defaults - adjust timing, pin configuration and other parameters of the I2C communication.
  6. Error Handling - how to recognize and handle driver configuration and communication errors.
  7. Delete Driver- on communication end to free resources used by the I2C driver.

The top level identification of an I2C driver is one of the two port numbers selected from i2c_port_t. The mode of operation for a given port is provided during driver configuration by selecting either “master” or “slave” from i2c_mode_t.

Configure Driver

The first step to establishing I2C communication is to configure the driver. This is done by setting several parameters contained in i2c_config_t structure:

  • I2C mode - select either slave or master from i2c_mode_t

  • Settings of the communication pins:

    • GPIO pin numbers assigned to the SDA and SCL signals
    • Whether to enable ESP32’s internal pull up for respective pins
  • I2C clock speed, if this configuration concerns the master mode

  • If this configuration concerns the slave mode:

    • Whether 10 bit address mode should be enabled
    • The slave address

Then, to initialize configuration for a given I2C port, call function i2c_param_config() with the port number and i2c_config_t structure as the function call parameters.

At this stage i2c_param_config() also sets “behind the scenes” couple of other I2C configuration parameters to commonly used default values. To check what are the values and how to change them, see Going Beyond Defaults.

Install Driver

Having the configuration initialized, the next step is to install the I2C driver by calling i2c_driver_install(). This function call requires the following parameters:

  • The port number, one of the two ports available, selected from i2c_port_t
  • The I2C mode, slave or master, selected from i2c_mode_t
  • Sizes of buffers that will be allocated for sending and receiving data in the slave mode
  • Flags used to allocate the interrupt

Run Communication

With the I2C driver installed, ESP32 is ready to communicate with other I2C devices. Programming of communication depends on whether selected I2C port operates in a master or a slave mode.

Master Mode

ESP32’s I2C port working in the master made is responsible for establishing communication with slave I2C devices and sending commands to trigger actions by slaves, like doing a measurement and sending back a result.

To organize this process the driver provides a container, called a “command link”, that should be populated with a sequence of commands and then passed to the I2C controller for execution.

Master Write

An example of building a commend link for I2C master sending n bytes to slave is shown below:

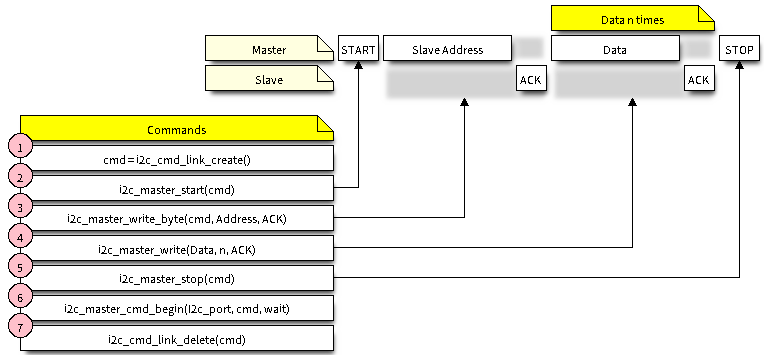

I2C command link - master write example

The following describes how the command link for a “master write” is set up and what comes inside:

  1. The first step is to create a command link with i2c_cmd_link_create().

    Then the command link is populated with series of data to be sent to the slave:

    1. Start bit - i2c_master_start()
    2. Single byte slave address - i2c_master_write_byte(). The address is provided as an argument of this function call.
    3. One or more bytes of data as an argument of i2c_master_write().
    4. Stop bit - i2c_master_stop()

    Both i2c_master_write_byte() and i2c_master_write() commands have additional argument defining whether slave should acknowledge received data or not.

  1. Execution of command link by I2C controller is triggered by calling i2c_master_cmd_begin().
  2. As the last step, after sending of the commands is finished, the resources used by the command link are released by calling i2c_cmd_link_delete().

Master Read

There is a similar sequence of steps for the master to read the data from a slave.

I2C command link - master read example

When reading the data, instead of “i2c_master_read…”, the command link is populated with i2c_master_read_byte() and / or i2c_master_read(). Also, the last read is configured for not providing an acknowledge by the master.

Master Write or Read?

After sending a slave’s address, see step 3 on pictures above, the master either writes to or reads from the slave. The information what the master will actually do is hidden in the least significant bit of the slave’s address.

Therefore the command link instructing the slave that the master will write the data contains the address like (ESP_SLAVE_ADDR << 1) | I2C_MASTER_WRITE and looks as follows:

i2c_master_write_byte(cmd, (ESP_SLAVE_ADDR << 1) | I2C_MASTER_WRITE, ACK_CHECK_EN)

By similar token the command link to read from the slave looks as follows:

i2c_master_write_byte(cmd, (ESP_SLAVE_ADDR << 1) | I2C_MASTER_READ, ACK_CHECK_EN)

Slave Mode

The API provides functions to read and write data by the slave - * i2c_slave_read_buffer() and i2c_slave_write_buffer(). An example of using these functions is provided in peripherals/i2c.

Interrupt Handling

To register an interrupt handler, call function i2c_isr_register(), to delete the handler call i2c_isr_free(). Description of interrupts triggered by I2C controller is provided in the ESP32 Technical Reference Manual (PDF).

Going Beyond Defaults

There are couple of I2C communication parameters setup during driver configuration (when calling i2c_param_config(), see Configure Driver), to some default commonly used values. Some parameters are also already configured in registers of the I2C controller. These parameters can be changed to user defined values by calling dedicated functions:

Each one of the above functions has a _get_ counterpart to check the currently set value.

To see the default values of parameters setup during driver configuration, please refer to file driver/i2c.c looking up defines with _DEFAULT suffix.

With function i2c_set_pin() it is also possible to select different SDA and SCL pins and alter configuration of pull ups, changing what has been already entered with i2c_param_config().

注解

ESP32’s internal pull ups are in the range of some tens of kOhm, and as such in most cases insufficient for use as I2C pull ups by themselves. We suggest to add external pull ups as well, with values as described in the I2C standard.

Error Handling

Most of driver’s function return the ESP_OK on successful completion or a specific error code on a failure. It is a good practice to always check the returned values and implement the error handling. The driver is also printing out log messages, when e.g. checking the correctness of entered configuration, that contain explanation of errors. For details please refer to file driver/i2c.c looking up defines with _ERR_STR suffix.

Use dedicated interrupts to capture communication failures. For instance there is I2C_TIME_OUT_INT interrupt triggered when I2C takes too long to receive data. See Interrupt Handling for related information.

To reset internal hardware buffers in case of communication failure, you can use i2c_reset_tx_fifo() and i2c_reset_rx_fifo().

Delete Driver

If the I2C communication is established with i2c_driver_install() for some specific period of time and then not required, the driver may be removed to free allocated resources by calling i2c_driver_delete().

Application Example

I2C master and slave example: peripherals/i2c.

API Reference

Functions

esp_err_t i2c_driver_install(i2c_port_t i2c_num, i2c_mode_t mode, size_t slv_rx_buf_len, size_t slv_tx_buf_len, int intr_alloc_flags)

I2C driver install.

Note
Only slave mode will use this value, driver will ignore this value in master mode.
Note
Only slave mode will use this value, driver will ignore this value in master mode.
Note
In master mode, if the cache is likely to be disabled(such as write flash) and the slave is time-sensitive, ESP_INTR_FLAG_IRAM is suggested to be used. In this case, please use the memory allocated from internal RAM in i2c read and write function, because we can not access the psram(if psram is enabled) in interrupt handle function when cache is disabled.
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
  • ESP_FAIL Driver install error
Parameters
  • i2c_num: I2C port number
  • mode: I2C mode( master or slave )
  • slv_rx_buf_len: receiving buffer size for slave mode
Parameters
  • slv_tx_buf_len: sending buffer size for slave mode
Parameters
  • intr_alloc_flags: Flags used to allocate the interrupt. One or multiple (ORred) ESP_INTR_FLAG_* values. See esp_intr_alloc.h for more info.

esp_err_t i2c_driver_delete(i2c_port_t i2c_num)

I2C driver delete.

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number

esp_err_t i2c_param_config(i2c_port_t i2c_num, const i2c_config_t *i2c_conf)

I2C parameter initialization.

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • i2c_conf: pointer to I2C parameter settings

esp_err_t i2c_reset_tx_fifo(i2c_port_t i2c_num)

reset I2C tx hardware fifo

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number

esp_err_t i2c_reset_rx_fifo(i2c_port_t i2c_num)

reset I2C rx fifo

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number

esp_err_t i2c_isr_register(i2c_port_t i2c_num, void (*fn)(void *), void *arg, int intr_alloc_flags, intr_handle_t *handle, )

I2C isr handler register.

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • fn: isr handler function
  • arg: parameter for isr handler function
  • intr_alloc_flags: Flags used to allocate the interrupt. One or multiple (ORred) ESP_INTR_FLAG_* values. See esp_intr_alloc.h for more info.
  • handle: handle return from esp_intr_alloc.

esp_err_t i2c_isr_free(intr_handle_t handle)

to delete and free I2C isr.

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • handle: handle of isr.

esp_err_t i2c_set_pin(i2c_port_t i2c_num, int sda_io_num, int scl_io_num, gpio_pullup_t sda_pullup_en, gpio_pullup_t scl_pullup_en, i2c_mode_t mode)

Configure GPIO signal for I2C sck and sda.

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • sda_io_num: GPIO number for I2C sda signal
  • scl_io_num: GPIO number for I2C scl signal
  • sda_pullup_en: Whether to enable the internal pullup for sda pin
  • scl_pullup_en: Whether to enable the internal pullup for scl pin
  • mode: I2C mode

Create and init I2C command link.

Note
Before we build I2C command link, we need to call i2c_cmd_link_create() to create a command link. After we finish sending the commands, we need to call i2c_cmd_link_delete() to release and return the resources.
Return
i2c command link handler

Free I2C command link.

Note
Before we build I2C command link, we need to call i2c_cmd_link_create() to create a command link. After we finish sending the commands, we need to call i2c_cmd_link_delete() to release and return the resources.
Parameters
  • cmd_handle: I2C command handle

esp_err_t i2c_master_start(i2c_cmd_handle_t cmd_handle)

Queue command for I2C master to generate a start signal.

Note
Only call this function in I2C master mode Call i2c_master_cmd_begin() to send all queued commands
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • cmd_handle: I2C cmd link

esp_err_t i2c_master_write_byte(i2c_cmd_handle_t cmd_handle, uint8_t data, bool ack_en)

Queue command for I2C master to write one byte to I2C bus.

Note
Only call this function in I2C master mode Call i2c_master_cmd_begin() to send all queued commands
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • cmd_handle: I2C cmd link
  • data: I2C one byte command to write to bus
  • ack_en: enable ack check for master

esp_err_t i2c_master_write(i2c_cmd_handle_t cmd_handle, uint8_t *data, size_t data_len, bool ack_en)

Queue command for I2C master to write buffer to I2C bus.

Note
Only call this function in I2C master mode Call i2c_master_cmd_begin() to send all queued commands
Note
If the psram is enabled and intr_flag is ESP_INTR_FLAG_IRAM, please use the memory allocated from internal RAM.
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • cmd_handle: I2C cmd link
  • data: data to send
Parameters
  • data_len: data length
  • ack_en: enable ack check for master

esp_err_t i2c_master_read_byte(i2c_cmd_handle_t cmd_handle, uint8_t *data, i2c_ack_type_t ack)

Queue command for I2C master to read one byte from I2C bus.

Note
Only call this function in I2C master mode Call i2c_master_cmd_begin() to send all queued commands
Note
If the psram is enabled and intr_flag is ESP_INTR_FLAG_IRAM, please use the memory allocated from internal RAM.
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • cmd_handle: I2C cmd link
  • data: pointer accept the data byte
Parameters
  • ack: ack value for read command

esp_err_t i2c_master_read(i2c_cmd_handle_t cmd_handle, uint8_t *data, size_t data_len, i2c_ack_type_t ack)

Queue command for I2C master to read data from I2C bus.

Note
Only call this function in I2C master mode Call i2c_master_cmd_begin() to send all queued commands
Note
If the psram is enabled and intr_flag is ESP_INTR_FLAG_IRAM, please use the memory allocated from internal RAM.
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • cmd_handle: I2C cmd link
  • data: data buffer to accept the data from bus
Parameters
  • data_len: read data length
  • ack: ack value for read command

esp_err_t i2c_master_stop(i2c_cmd_handle_t cmd_handle)

Queue command for I2C master to generate a stop signal.

Note
Only call this function in I2C master mode Call i2c_master_cmd_begin() to send all queued commands
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • cmd_handle: I2C cmd link

esp_err_t i2c_master_cmd_begin(i2c_port_t i2c_num, i2c_cmd_handle_t cmd_handle, TickType_t ticks_to_wait)

I2C master send queued commands. This function will trigger sending all queued commands. The task will be blocked until all the commands have been sent out. The I2C APIs are not thread-safe, if you want to use one I2C port in different tasks, you need to take care of the multi-thread issue.

Note
Only call this function in I2C master mode
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
  • ESP_FAIL Sending command error, slave doesn’t ACK the transfer.
  • ESP_ERR_INVALID_STATE I2C driver not installed or not in master mode.
  • ESP_ERR_TIMEOUT Operation timeout because the bus is busy.
Parameters
  • i2c_num: I2C port number
  • cmd_handle: I2C command handler
  • ticks_to_wait: maximum wait ticks.

int i2c_slave_write_buffer(i2c_port_t i2c_num, uint8_t *data, int size, TickType_t ticks_to_wait)

I2C slave write data to internal ringbuffer, when tx fifo empty, isr will fill the hardware fifo from the internal ringbuffer.

Note
Only call this function in I2C slave mode
Return
  • ESP_FAIL(-1) Parameter error
  • Others(>=0) The number of data bytes that pushed to the I2C slave buffer.
Parameters
  • i2c_num: I2C port number
  • data: data pointer to write into internal buffer
  • size: data size
  • ticks_to_wait: Maximum waiting ticks

int i2c_slave_read_buffer(i2c_port_t i2c_num, uint8_t *data, size_t max_size, TickType_t ticks_to_wait)

I2C slave read data from internal buffer. When I2C slave receive data, isr will copy received data from hardware rx fifo to internal ringbuffer. Then users can read from internal ringbuffer.

Note
Only call this function in I2C slave mode
Return
  • ESP_FAIL(-1) Parameter error
  • Others(>=0) The number of data bytes that read from I2C slave buffer.
Parameters
  • i2c_num: I2C port number
  • data: data pointer to accept data from internal buffer
  • max_size: Maximum data size to read
  • ticks_to_wait: Maximum waiting ticks

esp_err_t i2c_set_period(i2c_port_t i2c_num, int high_period, int low_period)

set I2C master clock period

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • high_period: clock cycle number during SCL is high level, high_period is a 14 bit value
  • low_period: clock cycle number during SCL is low level, low_period is a 14 bit value

esp_err_t i2c_get_period(i2c_port_t i2c_num, int *high_period, int *low_period)

get I2C master clock period

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • high_period: pointer to get clock cycle number during SCL is high level, will get a 14 bit value
  • low_period: pointer to get clock cycle number during SCL is low level, will get a 14 bit value

esp_err_t i2c_filter_enable(i2c_port_t i2c_num, uint8_t cyc_num)

enable hardware filter on I2C bus Sometimes the I2C bus is disturbed by high frequency noise(about 20ns), or the rising edge of the SCL clock is very slow, these may cause the master state machine broken. enable hardware filter can filter out high frequency interference and make the master more stable.

Note
Enable filter will slow the SCL clock.
Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • cyc_num: the APB cycles need to be filtered(0<= cyc_num <=7). When the period of a pulse is less than cyc_num * APB_cycle, the I2C controller will ignore this pulse.

esp_err_t i2c_filter_disable(i2c_port_t i2c_num)

disable filter on I2C bus

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number

esp_err_t i2c_set_start_timing(i2c_port_t i2c_num, int setup_time, int hold_time)

set I2C master start signal timing

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • setup_time: clock number between the falling-edge of SDA and rising-edge of SCL for start mark, it’s a 10-bit value.
  • hold_time: clock num between the falling-edge of SDA and falling-edge of SCL for start mark, it’s a 10-bit value.

esp_err_t i2c_get_start_timing(i2c_port_t i2c_num, int *setup_time, int *hold_time)

get I2C master start signal timing

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • setup_time: pointer to get setup time
  • hold_time: pointer to get hold time

esp_err_t i2c_set_stop_timing(i2c_port_t i2c_num, int setup_time, int hold_time)

set I2C master stop signal timing

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • setup_time: clock num between the rising-edge of SCL and the rising-edge of SDA, it’s a 10-bit value.
  • hold_time: clock number after the STOP bit’s rising-edge, it’s a 14-bit value.

esp_err_t i2c_get_stop_timing(i2c_port_t i2c_num, int *setup_time, int *hold_time)

get I2C master stop signal timing

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • setup_time: pointer to get setup time.
  • hold_time: pointer to get hold time.

esp_err_t i2c_set_data_timing(i2c_port_t i2c_num, int sample_time, int hold_time)

set I2C data signal timing

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • sample_time: clock number I2C used to sample data on SDA after the rising-edge of SCL, it’s a 10-bit value
  • hold_time: clock number I2C used to hold the data after the falling-edge of SCL, it’s a 10-bit value

esp_err_t i2c_get_data_timing(i2c_port_t i2c_num, int *sample_time, int *hold_time)

get I2C data signal timing

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • sample_time: pointer to get sample time
  • hold_time: pointer to get hold time

esp_err_t i2c_set_timeout(i2c_port_t i2c_num, int timeout)

set I2C timeout value

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • timeout: timeout value for I2C bus (unit: APB 80Mhz clock cycle)

esp_err_t i2c_get_timeout(i2c_port_t i2c_num, int *timeout)

get I2C timeout value

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • timeout: pointer to get timeout value

esp_err_t i2c_set_data_mode(i2c_port_t i2c_num, i2c_trans_mode_t tx_trans_mode, i2c_trans_mode_t rx_trans_mode)

set I2C data transfer mode

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • tx_trans_mode: I2C sending data mode
  • rx_trans_mode: I2C receving data mode

esp_err_t i2c_get_data_mode(i2c_port_t i2c_num, i2c_trans_mode_t *tx_trans_mode, i2c_trans_mode_t *rx_trans_mode)

get I2C data transfer mode

Return
  • ESP_OK Success
  • ESP_ERR_INVALID_ARG Parameter error
Parameters
  • i2c_num: I2C port number
  • tx_trans_mode: pointer to get I2C sending data mode
  • rx_trans_mode: pointer to get I2C receiving data mode

Structures

struct i2c_config_t

I2C initialization parameters.

Public Members

i2c_mode_t mode

I2C mode

gpio_num_t sda_io_num

GPIO number for I2C sda signal

gpio_pullup_t sda_pullup_en

Internal GPIO pull mode for I2C sda signal

gpio_num_t scl_io_num

GPIO number for I2C scl signal

gpio_pullup_t scl_pullup_en

Internal GPIO pull mode for I2C scl signal

uint32_t clk_speed

I2C clock frequency for master mode, (no higher than 1MHz for now)

uint8_t addr_10bit_en

I2C 10bit address mode enable for slave mode

uint16_t slave_addr

I2C address for slave mode

Macros

I2C_APB_CLK_FREQ

I2C source clock is APB clock, 80MHz

I2C_FIFO_LEN

I2C hardware fifo length

Type Definitions

typedef void *i2c_cmd_handle_t

I2C command handle

Enumerations

enum i2c_mode_t

Values:

I2C_MODE_SLAVE = 0

I2C slave mode

I2C_MODE_MASTER

I2C master mode

I2C_MODE_MAX
enum i2c_rw_t

Values:

I2C_MASTER_WRITE = 0

I2C write data

I2C_MASTER_READ

I2C read data

enum i2c_trans_mode_t

Values:

I2C_DATA_MODE_MSB_FIRST = 0

I2C data msb first

I2C_DATA_MODE_LSB_FIRST = 1

I2C data lsb first

I2C_DATA_MODE_MAX
enum i2c_opmode_t

Values:

I2C_CMD_RESTART = 0

I2C restart command

I2C_CMD_WRITE

I2C write command

I2C_CMD_READ

I2C read command

I2C_CMD_STOP

I2C stop command

I2C_CMD_END

I2C end command

enum i2c_port_t

Values:

I2C_NUM_0 = 0

I2C port 0

I2C_NUM_1

I2C port 1

I2C_NUM_MAX
enum i2c_addr_mode_t

Values:

I2C_ADDR_BIT_7 = 0

I2C 7bit address for slave mode

I2C_ADDR_BIT_10

I2C 10bit address for slave mode

I2C_ADDR_BIT_MAX
enum i2c_ack_type_t

Values:

I2C_MASTER_ACK = 0x0

I2C ack for each byte read

I2C_MASTER_NACK = 0x1

I2C nack for each byte read

I2C_MASTER_LAST_NACK = 0x2

I2C nack for the last byte

I2C_MASTER_ACK_MAX
