Flashing Models

[中文]

In the AI industry, a model refers to a mathematical representation of a system or process. It is used to make predictions or decisions based on input data. There are many types of models, such as decision trees, neural networks, and support vector machines, each with their own strengths and weaknesses. Esprssif also provides our trained models such as WakeNet and MultiNet (see the model data used in model)

To use our models in your project, you need to flash these models. Currently, ESP-SR supports the following methods to flash models:

ESP32-S3:

  • Load directly from SIP Flash File System (flash)

  • Load from external SD card

So that on ESP32-S3 you can:

  • Greatly reduce the size of the user application APP BIN

  • Supports the selection of up to two wake words

  • Support online switching of Chinese and English Speech Command Recognition

  • Convenient for users to perform OTA

  • Supports reading and changing models from SD card, which is more convenient and can reduce the size of module Flash used in the project

  • When the user is developing the code, when the modification does not involve the model, it can avoid flashing the model data every time, greatly reducing the flashing time and improving the development efficiency

Configuration

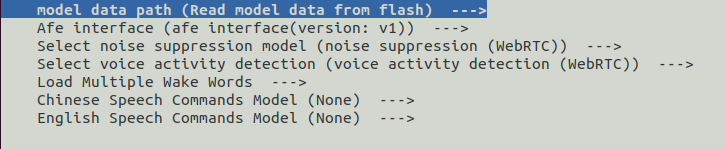

Run idf.py menuconfig to navigate to ESP Speech Recognition:

overview

overview

Model Data Path

This option indicates the storage location of the model data: Read model data from flash or Read model data from SD card.

  • Read model data from flash means that the model data is stored in the flash, and the model data will be loaded from the flash partition

  • Read model data from SD card means that the model data is stored in the SD card, and the model data will be loaded from the SD card

Use AFE

This option is enabled by default. Users do not need to modify it. Please keep the default configuration.

Use WakeNet

This option is enabled by default. When the user only uses AEC or BSS, etc., and does not need WakeNet or MultiNet, please disable this option, which reduces the size of the project firmware.

Select wake words by via menuconfig by navigating to ESP Speech Recognition > Select wake words. The model name of wake word in parentheses must be used to initialize WakeNet handle.

select wake wake

If you want to select multiple wake words, please select Load Multiple Wake Words

multi wake wake

Then you can select multiple wake words at the same time:


Note

ESP32-S3 does support multiple wake words. Users can select more than one wake words according to the hardware flash size.

For more details, please refer to WakeNet .

Use Multinet

This option is enabled by default. When users only use WakeNet or other algorithm modules, please disable this option, which reduces the size of the project firmware in some cases.

Chinese Speech Commands Model

ESP32-S3 supports command words in both Chinese and English:

  • None

  • Chinese single recognition (MultiNet4.5)

  • Chinese single recognition (MultiNet4.5 quantized with 8-bit)

  • English Speech Commands Model

The user needs to add Chinese Speech Command words to this item when Chinese Speech Commands Model is not None.

For more details, please refer to Section MultiNet .

English Speech Commands Model

ESP32-S3 supports command words in both Chinese and English, and allows users to switch between these two languages.

  • None

  • English recognition (MultiNet5 quantized with 8-bit, depends on WakeNet8)

  • Add Chinese speech commands

The user needs to add English Speech Command words to this item when English Speech Commands Model is not None.

How To Use

After the above-mentioned configuration, users can initialize and start using the models following the examples described in the ESP-Skainet repo.

Here, we only introduce the code implementation, which can also be found in src/model_path.c.

ESP32-S3 can load model data from flash or SD card.

Load Model Data from flash

  1. Write a partition table:

    model,  data, spiffs,         , SIZE,

    Among them, SIZE can refer to the recommended size when the user uses idf.py build to compile, for example: Recommended model partition size: 500K

  2. Initialize the flash partition: User can use esp_srmodel_init(partition_label) API to initialize flash and return all loaded models.

    • base_path: The model storage base_path is srmodel and cannot be changed

    • partition_label: The partition label of the model is model, which needs to be consistent with the Name in the above partition table

After completing the above configuration, the project will automatically generate model.bin after the project is compiled, and flash it to the flash partition.

Load Model Data from SD Card

When configured to load model data from Read model data from SD card, users need to:

  • Manually load model data from SD card

    After the above-mentioned configuration, users can compile the code, and copy the files in model/target to the root directory of the SD card.

  • Initialize SD card

    Users must initialize SD card so the chip can load SD card. Users of ESP-Skainet can call esp_sdcard_init("/sdcard", num); to initialize any board supported SD cards. Otherwise, users need to write the initialization code themselves. After the above-mentioned steps, users can flash the project.

  • Read models

    User use esp_srmodel_init(model_path) to read models in model_path of SD card.

Model initialization and Usage

 //
 // step1: return models in flash or in sdcard
 //
 char *model_path = your_model_path: // partition_label or model_path in sdcard;
 models = esp_srmodel_init(model_path);

//
// step2: select the specific model by keywords
//
char *wn_name = esp_srmodel_filter(models, ESP_WN_PREFIX, NULL); // select WakeNet model
char *nm_name = esp_srmodel_filter(models, ESP_MN_PREFIX, NULL); // select MultiNet model
char *alexa_wn_name = esp_srmodel_filter(models, ESP_WN_PREFIX, "alexa"); // select WakeNet with "alexa" wake word.
char *en_mn_name = esp_srmodel_filter(models, ESP_MN_PREFIX, ESP_MN_ENGLISH); // select english MultiNet model
char *cn_mn_name = esp_srmodel_filter(models, ESP_MN_PREFIX, ESP_MN_CHINESE); // select english MultiNet model

// It also works if you use the model name directly in your code.
char *my_wn_name = "wn9_hilexin"
// we recommend you to check that it is loaded correctly
 if (!esp_srmodel_exists(models, my_wn_name))
     printf("%s can not be loaded correctly\n")

//
// step3: initialize model
//
esp_wn_iface_t *wakenet = esp_wn_handle_from_name(wn_name);
model_iface_data_t *wn_model_data = wakenet->create(wn_name, DET_MODE_2CH_90);

esp_mn_iface_t *multinet = esp_mn_handle_from_name(mn_name);
model_iface_data_t *mn_model_data = multinet->create(mn_name, 6000);
