Serial Protocol

This is technical documentation for the serial protocol used by the UART bootloader in the ESP32-S2 ROM and the esptool stub loader program.

The UART bootloader runs on chip reset if certain strapping pins are set. See Entering the Bootloader for details of this process.

The ESP32-S2 ROM loader serial protocol is similar to ESP8266, although ESP32-S2 adds some additional commands and some slightly different behaviour.

By default, esptool uploads a stub “software loader” to the IRAM of the chip. The stub loader then replaces the ROM loader for all future interactions. This standardizes much of the behaviour. Pass --no-stub to esptool in order to disable the stub loader. See Flasher Stub for more information.

Note

There are differences in the serial protocol between ESP chips! To switch to documentation for a different chip, choose the desired target from the dropdown menu in the upper left corner.

Packet Description

The host computer sends a SLIP encoded command request to the ESP chip. The ESP chip responds to the request with a SLIP encoded response packet, including status information and any data as a payload.

Low Level Protocol

The bootloader protocol uses SLIP packet framing for data transmissions in both directions.

Each SLIP packet begins and ends with 0xC0. Within the packet, all occurrences of 0xC0 and 0xDB are replaced with 0xDB 0xDC and 0xDB 0xDD, respectively. The replacing is to be done after the checksum and lengths are calculated, so the packet length may be longer than the size field below.

Command Packet

Each command is a SLIP packet initiated by the host and results in a response packet. Inside the packet, the packet consists of a header and a variable-length body. All multi-byte fields are little-endian.

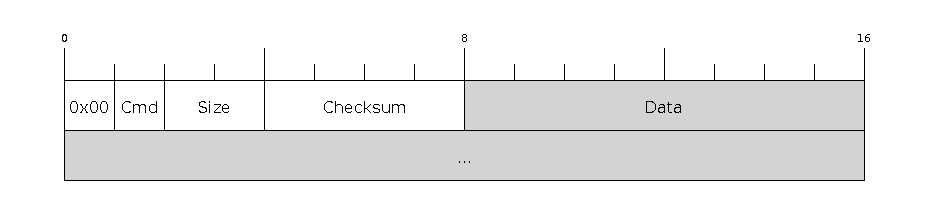

Command packet format

Byte

Name

Comment

0

Direction

Always 0x00 for requests

1

Command

Command identifier (see Commands).

2-3

Size

Length of Data field, in bytes.

4-7

Checksum

Simple checksum of part of the data field (only used for some commands, see Checksum).

8..n

Data

Variable length data payload (0-65535 bytes, as indicated by Size parameter). Usage depends on specific command.

Response Packet

Each received command will result in a response SLIP packet sent from the ESP chip to the host. Contents of the response packet is:

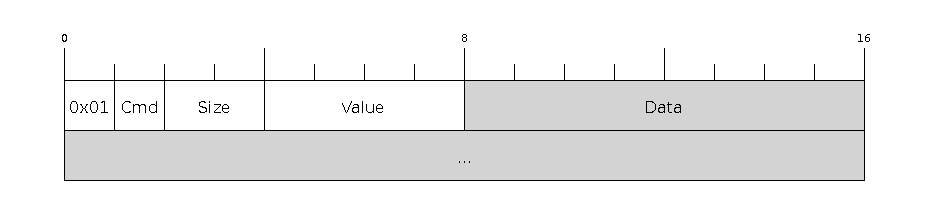

Command packet format

Byte

Name

Comment

0

Direction

Always 0x01 for responses

1

Command

Same value as Command identifier in the request packet that triggered the response

2-3

Size

Size of data field. At least the length of the Status Bytes (2 or 4 bytes, see below).

4-7

Value

Response value used by READ_REG command (see below). Zero otherwise.

8..n

Data

Variable length data payload. Length indicated by “Size” field.

Status bytes

The final bytes of the Data payload indicate command status:

For stub loader the final two bytes indicate status (most commands return at least a two byte Data payload):

Byte

Name

Comment

Size-2

Status

Status flag, success (0) or failure (1)

Size-1

Error

If Status is 1, this indicates the type of error.

For ESP32-S2 ROM (only, not the stub loader) the final four bytes are used, but only the first two bytes contain status information:

Byte

Name

Comment

Size-4

Status

Status flag, success (0) or failure (1)

Size-3

Error

If Status 1, this indicates the type of error.

Size-2

Reserved

Size-1

Reserved

ROM Loader Errors

The ROM loader sends the following error values

Value

Meaning

0x05

“Received message is invalid” (parameters or length field is invalid)

0x06

“Failed to act on received message”

0x07

“Invalid CRC in message”

0x08

“Flash write error” - after writing a block of data to flash, the ROM loader reads the value back and the 8-bit CRC is compared to the data read from flash. If they don’t match, this error is returned.

0x09

“Flash read error” - SPI read failed

0x0a

“Flash read length error” - SPI read request length is too long

0x0b

“Deflate error” (compressed uploads only)

Stub Loader Status & Error

If the stub loader is used:

  • The status response is always 2 bytes regardless of chip type.

  • Stub loader error codes are entirely different to the ROM loader codes. They all take the form 0xC*, or 0xFF for “unimplemented command”. (Full list here).

After sending a command, the host should continue to read response packets until one is received where the Command field matches the request’s Command field, or a timeout is exceeded.

Commands

Supported by stub loader and ROM loader

Byte

Name

Description

Input Data

Output Data

0x02

FLASH_BEGIN

Begin Flash Download

Four 32-bit words: size to erase, number of data packets, data size in one packet, flash offset. A fifth 32-bit word passed to ROM loader only: 1 to begin encrypted flash, 0 to not.

0x03

FLASH_DATA

Flash Download Data

Four 32-bit words: data size, sequence number, 0, 0, then data. Uses Checksum.

0x04

FLASH_END

Finish Flash Download

One 32-bit word: 0 to reboot, 1 to run user code. Not necessary to send this command if you wish to stay in the loader

0x05

MEM_BEGIN

Begin RAM Download Start

Total size, number of data packets, data size in one packet, memory offset

0x06

MEM_END

Finish RAM Download

Two 32-bit words: execute flag, entry point address

0x07

MEM_DATA

RAM Download Data

Four 32-bit words: data size, sequence number, 0, 0, then data. Uses Checksum.

0x08

SYNC

Sync Frame

36 bytes: 0x07 0x07 0x12 0x20, followed by 32 x 0x55

0x09

WRITE_REG

Write 32-bit memory address

Four 32-bit words: address, value, mask and delay (in microseconds)

0x0a

READ_REG

Read 32-bit memory address

Address as 32-bit word

Read data as 32-bit word in value field.

0x0b

SPI_SET_PARAMS

Configure SPI flash

Six 32-bit words: id, total size in bytes, block size, sector size, page size, status mask.

0x0d

SPI_ATTACH

Attach SPI flash

32-bit word: Zero for normal SPI flash. A second 32-bit word (should be 0) is passed to ROM loader only.

0x0f

CHANGE_BAUDRATE

Change Baud rate

Two 32-bit words: new baud rate, 0 if we are talking to the ROM loader or the current/old baud rate if we are talking to the stub loader.

0x10

FLASH_DEFL_BEGIN

Begin compressed flash download

Four 32-bit words: uncompressed size, number of data packets, data packet size, flash offset. With stub loader the uncompressed size is exact byte count to be written, whereas on ROM bootloader it is rounded up to flash erase block size. A fifth 32-bit word passed to ROM loader only: 1 to begin encrypted flash, 0 to not.

0x11

FLASH_DEFL_DATA

Compressed flash download data

Four 32-bit words: data size, sequence number, 0, 0, then data. Uses Checksum.

Error code 0xC1 on checksum error.

0x12

FLASH_DEFL_END

End compressed flash download

One 32-bit word: 0 to reboot, 1 to run user code. Not necessary to send this command if you wish to stay in the loader.

0x13

SPI_FLASH_MD5

Calculate MD5 of flash region

Four 32-bit words: address, size, 0, 0

Body contains 16 raw bytes of MD5 followed by 2 status bytes (stub loader) or 32 hex-coded ASCII (ROM loader) of calculated MD5

0x14

GET_SECURITY_INFO

Read chip security info

32 bits flags, 1 byte flash_crypt_cnt, 7x1 byte key_purposes

Supported by stub loader only

ROM loaders will not recognise these commands.

Byte

Name

Description

Input

Output

0xd0

ERASE_FLASH

Erase entire flash chip

0xd1

ERASE_REGION

Erase flash region

Two 32-bit words: flash offset to erase, erase size in bytes. Both must be multiples of flash sector size.

0xd2

READ_FLASH

Read flash

Four 32-bit words: flash offset, read length, flash sector size, read packet size, maximum number of un-acked packets

0xd3

RUN_USER_CODE

Exits loader and runs user code

Checksum

The checksum field is ignored (can be zero) for all commands except for MEM_DATA, FLASH_DATA, and FLASH_DEFL_DATA.

Each of the _DATA command packets (like FLASH_DEFL_DATA, MEM_DATA) has the same “data payload” format:

Bytes

Name

Format

0-3

“Data to write” length

Little endian 32-bit word.

4-7

Sequence number

Little endian 32-bit word. The sequence numbers are 0 based.

8-15

0

Two words of all zeroes, unused.

16-

“Data to write”

Length given at beginning of payload.

The checksum is only applied to this final “data to write” section, not the first 16 bytes of data.

To calculate checksum, start with seed value 0xEF and XOR each individual byte in the “data to write”. The 8-bit result is stored in the checksum field of the packet header (as a little endian 32-bit value).

Note

Because this checksum is not adequate to ensure valid data, the SPI_FLASH_MD5 command was added to validate flash contents after flashing. It is recommended that this command is always used. See Verifying Uploaded Data, below.

Functional Description

Download procedure flow chart

Note

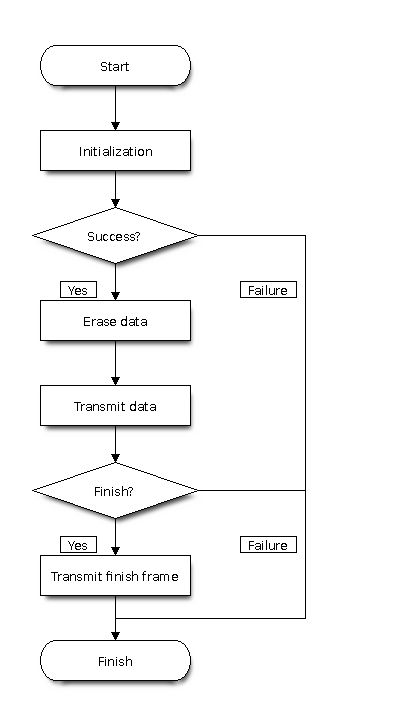

This flow chart is used to illustrate the download procedure (writing to flash), other commands have different flows.

Initial Synchronisation

  • The ESP chip is reset into UART bootloader mode. The host starts by sending SYNC commands. These commands have a large data payload which is also used by the ESP chip to detect the configured baud rate. ESP32-S2 always initialises at 115200bps. However the sync packets can be sent at any baud rate, and the UART peripheral will detect this.

  • The host should wait until it sees a valid response to a SYNC command, indicating the ESP chip is correctly communicating.

  • Esptool then (by default) uses the “RAM Download” sequence to upload stub loader code to IRAM of the chip. The MEM_END command contains the entry-point address to run the stub loader. The stub loader then sends a custom SLIP packet of the sequence OHAI (0xC0 0x4F 0x48 0x41 0x49 0xC0), indicating that it is now running. This is the only unsolicited packet ever sent by the ESP. If the --no-stub argument is supplied to esptool, this entire step is skipped.

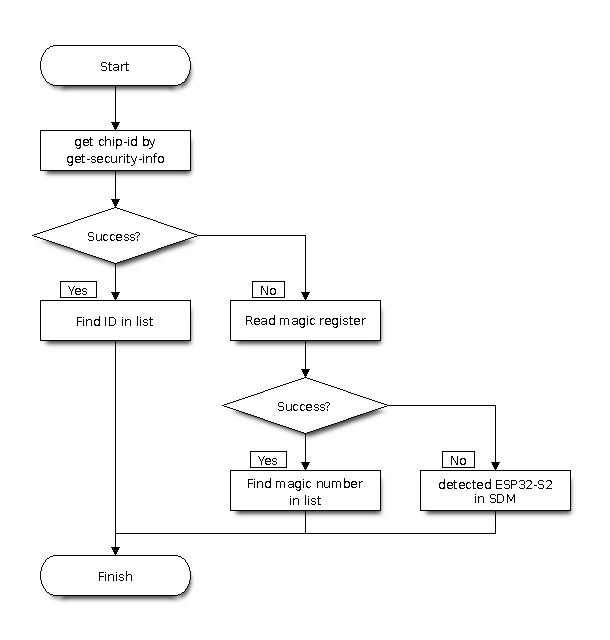

  • esptool then uses READ_REG commands to read various addresses on the chip, to identify chip subtype, revision, etc.

  • For commands which need to use the flash, the ESP32-S2 ROM an stub loader requires the SPI_ATTACH and SPI_SET_PARAMS commands. See SPI Configuration Commands.

  • For stub loader and/or ESP32-S2 ROM loader, the host can send a CHANGE_BAUD command to set the baud rate to an explicit value. Compared to auto-detecting during the SYNC pulse, this can be more reliable for setting very high baud rate. Esptool tries to sync at (maximum) 115200bps and then sends this command to go to a higher baud rate, if requested.

Writing Data

(Includes RAM Download, Flash Download, Compressed Flash Download.)

  • RAM Download (MEM_BEGIN, MEM_DATA, MEM_END) loads data into the ESP chip memory space and (optionally) executes it.

  • Flash Download (FLASH_BEGIN, FLASH_DATA) flashes data into the ESP SPI flash.

  • Compressed Flash Download is the same, only the data is compressed using the gzip Deflate algorithm to reduce serial overhead.

All three of these sequences follow a similar pattern:

  • A _BEGIN command (FLASH_BEGIN, etc) is sent which contains basic parameters for the flash erase size, start address to write to, etc. The uploader also needs to specify how many “blocks” of data (ie individual data packets) will be sent, and how big each packet is.

  • One or more _DATA commands (FLASH_DATA, etc) is sent where the data payload contains the actual data to write to flash/RAM. In the case of Compressed Flash Downloads, the data is compressed using the gzip deflate algorithm. The number of _DATA commands is specified in the _BEGIN command, as is the size of each _DATA payload. The last data block should be padded to the block size with 0xFF bytes.

  • An _END command (FLASH_END, etc) is sent to exit the bootloader and optionally reset the chip (or jump to an address in RAM, in the case of MEM_END). Not necessary to send after flashing if you wish to continue sending other or different commands.

It’s not necessary to send flash erase commands before sending commands to write to flash, etc. The ROM loaders erase the to-be-written region in response to the FLASH_BEGIN command. The stub loader does just-in-time erasing as it writes data, to maximise overall flashing performance (each block of data is read into RAM via serial while the previous block is simultaneously being written to flash, and 4KB and 64KB erases are done as needed before writing to flash).

The block size chosen should be small enough to fit into RAM of the device. Esptool uses 16KB which gives good performance when used with the stub loader.

Verifying Uploaded Data

The 8-bit checksum used in the upload protocol is not sufficient to ensure valid flash contents after upload. The uploader should send the SPI_FLASH_MD5 command or use another method to verify flash contents.

The SPI_FLASH_MD5 command passes the start address in flash and the size of data to calculate. The MD5 value is returned in the response payload, before the status bytes.

Note that the ESP32-S2 ROM loader returns the md5sum as 32 hex encoded ASCII bytes, whereas the stub loader returns the md5sum as 16 raw data bytes of MD5 followed by 2 status bytes.

SPI Configuration Commands

SPI Attach command

The SPI _ATTACH command enables the SPI flash interface. It takes a 32-bit data payload which is used to determine which SPI peripheral and pins should be used to connect to SPI flash.

On the ESP32-S2 stub loader sending this command before interacting with SPI flash is optional. On ESP32-S2 ROM loader, it is required to send this command before interacting with SPI flash.

Value

Meaning

0

Default SPI flash interface

1

HSPI interface

(other values)

Pin numbers as 6-bit values, packed into a 30-bit value. Order (from MSB): HD pin, Q pin, D pin, CS pin, CLK pin.

The “Default SPI flash interface” uses pins configured via the SPI_PAD_CONFIG_xxx efuses (if unset, these efuses are all zero and the default SPI flash pins given in the datasheet are used.)

When writing the values of each pin as 6-bit numbers packed into the data word, each 6-bit value uses the following representation:

On ESP32-S2 ROM loader only, there is an additional 4 bytes in the data payload of this command. These bytes should all be set to zero.

SPI Set Parameters

The SPI_SET_PARAMS command sets some parameters of the attached SPI flash chip (sizes, etc).

All the values which are passed except total size are hardcoded, and most are not used when writing to flash. See flash_set_parameters function in esptool for the values which it sends.

32-bit Read/Write

The 32-bit read/write commands (READ_REG, WRITE_REG) allow word-oriented reading and writing of memory and register data.

These commands can be used to manipulate peripherals in arbitrary ways. For example, the esptool “flash id” functionality is implemented by manipulating the SPI peripheral registers to send a JEDEC flash ID command to the flash chip and read the response.

Reading Flash

The stub loader implements a READ_FLASH command. This command behaves differently to other commands, including the ROM loader’s READ_FLASH command:

  • The host sends the READ_FLASH command and the data payload contains the offset, read size, size of each individual packet of data, and the maximum number of “un-acknowledged” data packets which can be in flight at one time.

  • The stub loader will send a standard response packet, with no additional data payload.

  • Now the stub loader will start sending SLIP packets with raw data (of the size requested in the command). There is no metadata included with these SLIP packets.

  • After each SLIP packet is received, the host should send back a 4 byte raw SLIP acknowledgement packet with the total number of bytes which have been received. There is no header or other metadata included with these SLIP packets.

  • The stub loader may send up to a maximum number (specified by the host in the READ_FLASH commands) of data packets before waiting for the first acknowledgement packet. No more than this “max in flight” limit can be un-acknowledged at any one time.

  • After all data packets are acknowledged received, the stub loader sends a 16 byte MD5 digest of all the data which was read from flash. This is also sent as a raw SLIP packet, with no metadata.

After the read flash process is complete, the stub loader goes back to normal command/response operation.

The ROM loader read flash command is more normal but also much slower to read data.

Tracing Esptool Serial Communications

esptool has a --trace option which can be supplied in the first group of arguments (before the command). This will dump all traffic sent and received via the serial port to the console.

Here is a sample extract, showing a READ_REG command and response:

TRACE +0.000 command op=0x0a data len=4 wait_response=1 timeout=3.000 data=1400f43f
TRACE +0.000 Write 14 bytes: c0000a0400000000001400f43fc0
TRACE +0.005 Read 1 bytes: c0
TRACE +0.000 Read 11 bytes: 010a0200620100000000c0
TRACE +0.000 Received full packet: 010a0200620100000000

The +X.XXX value is the time delta (in seconds) since the last trace line.

Values are printed in hexadecimal. If more than 16 bytes is printed at one time, a split display is used with hexadecimal bytes on the left and ASCII on the right. Non-printable characters are represented as . in ASCII:

Note that multiple protocol layers are represented in the logs. The “Write X bytes” lines show exactly which bytes are being sent “over the wire”, including SLIP framing. Similarly the “Read X bytes” lines show what bytes are being read over the wire, including any SLIP framing. Once a full SLIP packet is read, the same bytes - as a SLIP payload with any escaping removed - appear in the “Received full packet” log lines.

Here is a second example showing part of the initial synchronization sequence (lots of 0x55 bytes which are U in ASCII):

TRACE +0.000 Write 46 bytes:
    c000082400000000 0007071220555555 | ...$........ UUU
    5555555555555555 5555555555555555 | UUUUUUUUUUUUUUUU
    5555555555555555 5555555555c0     | UUUUUUUUUUUUU.
TRACE +0.011 Read 1 bytes: c0
TRACE +0.000 Read 63 bytes:
    0108040007122055 00000000c0c00108 | ...... U........
    0400071220550000 0000c0c001080400 | .... U..........
    0712205500000000 c0c0010804000712 | .. U............
    205500000000c0c0 01080400071220   |  U............
TRACE +0.000 Received full packet: 010804000712205500000000
TRACE +0.000 Received full packet: 010804000712205500000000

Important

If you don’t plan to use the esptool stub loader, pass --no-stub --trace to see interactions with the chip’s built-in ROM loader only. Otherwise, the trace will show the full binary upload of the loader.

In addition to this trace feature, most operating systems have “system call trace” or “port trace” features which can be used to dump serial interactions.
