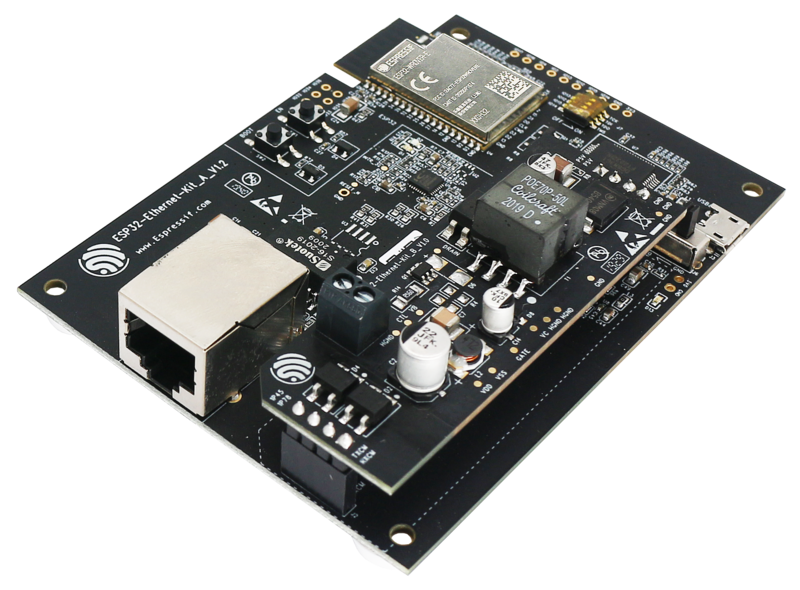

ESP32-Ethernet-Kit v1.2

[中文]

ESP32 board for Ethernet and network application evaluation. Onboard capabilities include: Ethernet PHY, RJ45, microSD, USB-UART.

Onboard Capabilities

• Ethernet PHY, RJ45, microSD, USB-UART

Hardware User Guide

The complete hardware guide is available at ESP32-Ethernet-Kit.

BMGR Configuration

The board definition is in esp_boards/esp32_ethernet_kit.

---
