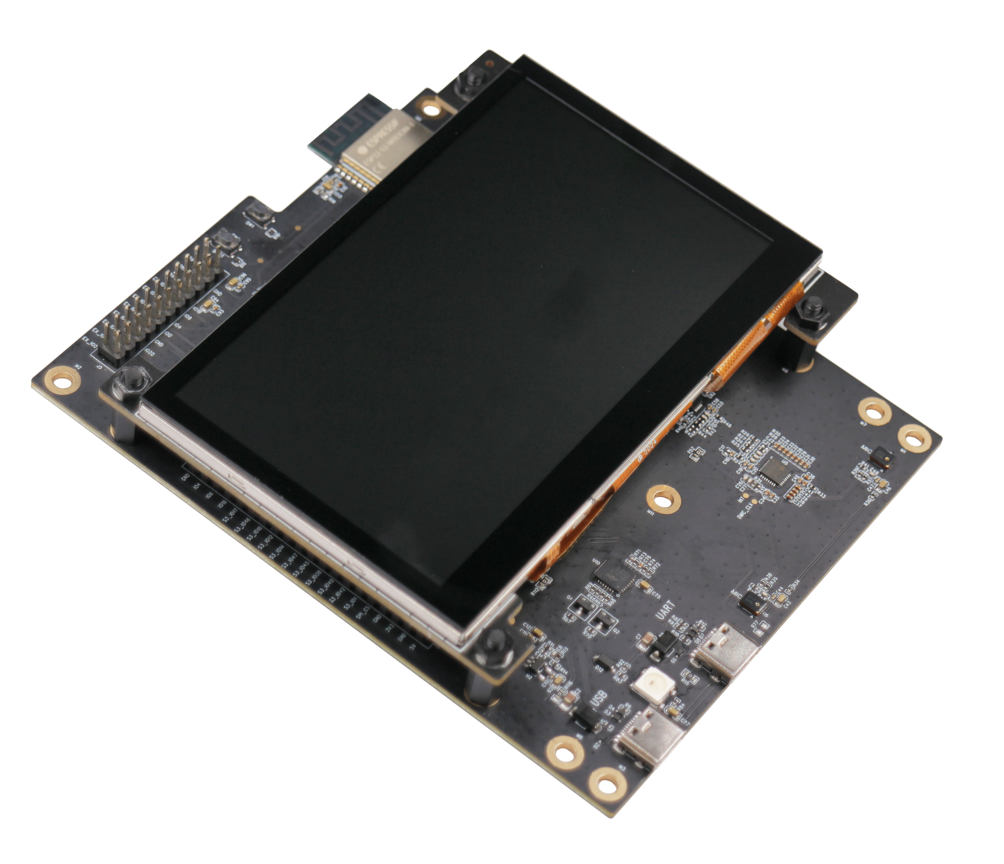

ESP32-S3-LCD-EV-Board v1.5

[中文]

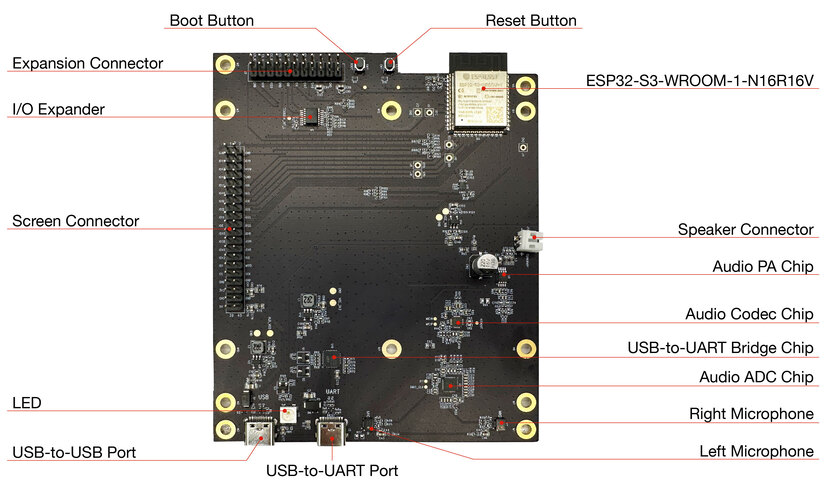

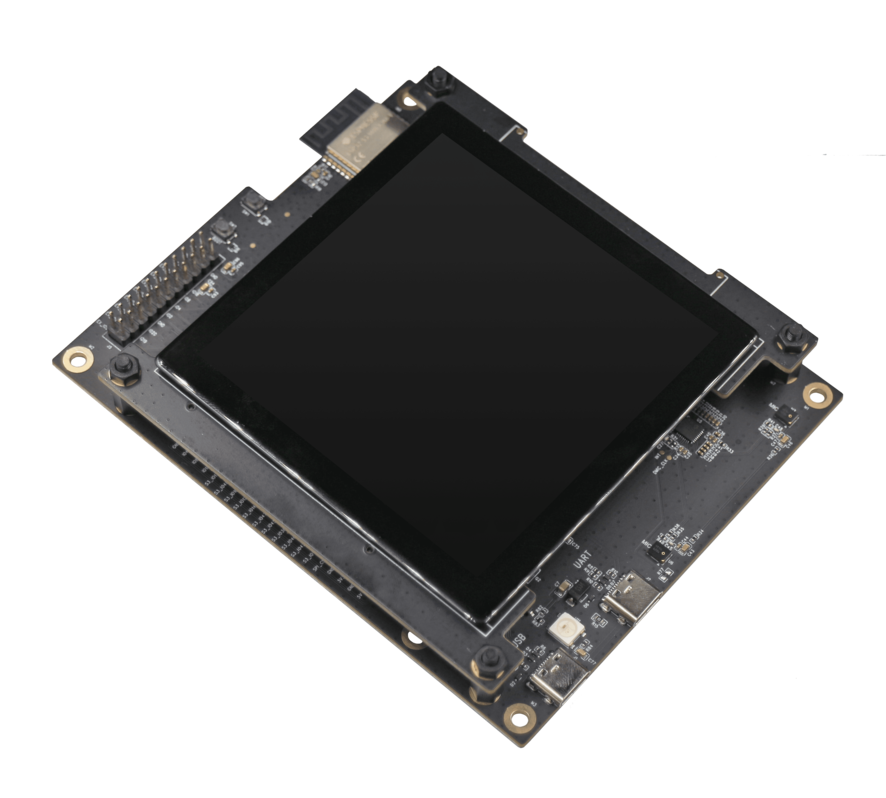

Board for ESP32-S3 display evaluation. Onboard capabilities include: GC9503 RGB LCD, FT5x06, ES8311/ES7210, GPIO boot button.

Onboard Capabilities

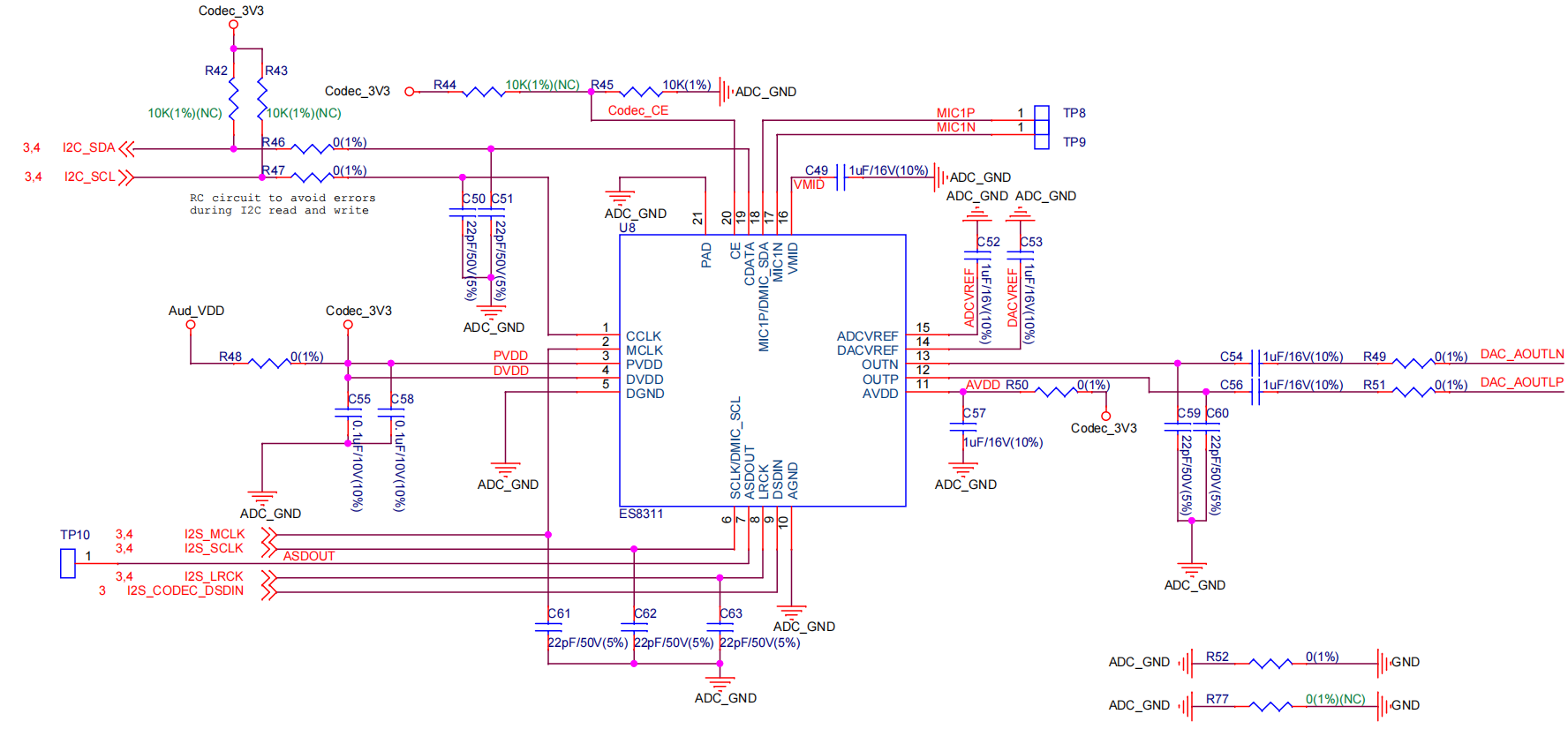

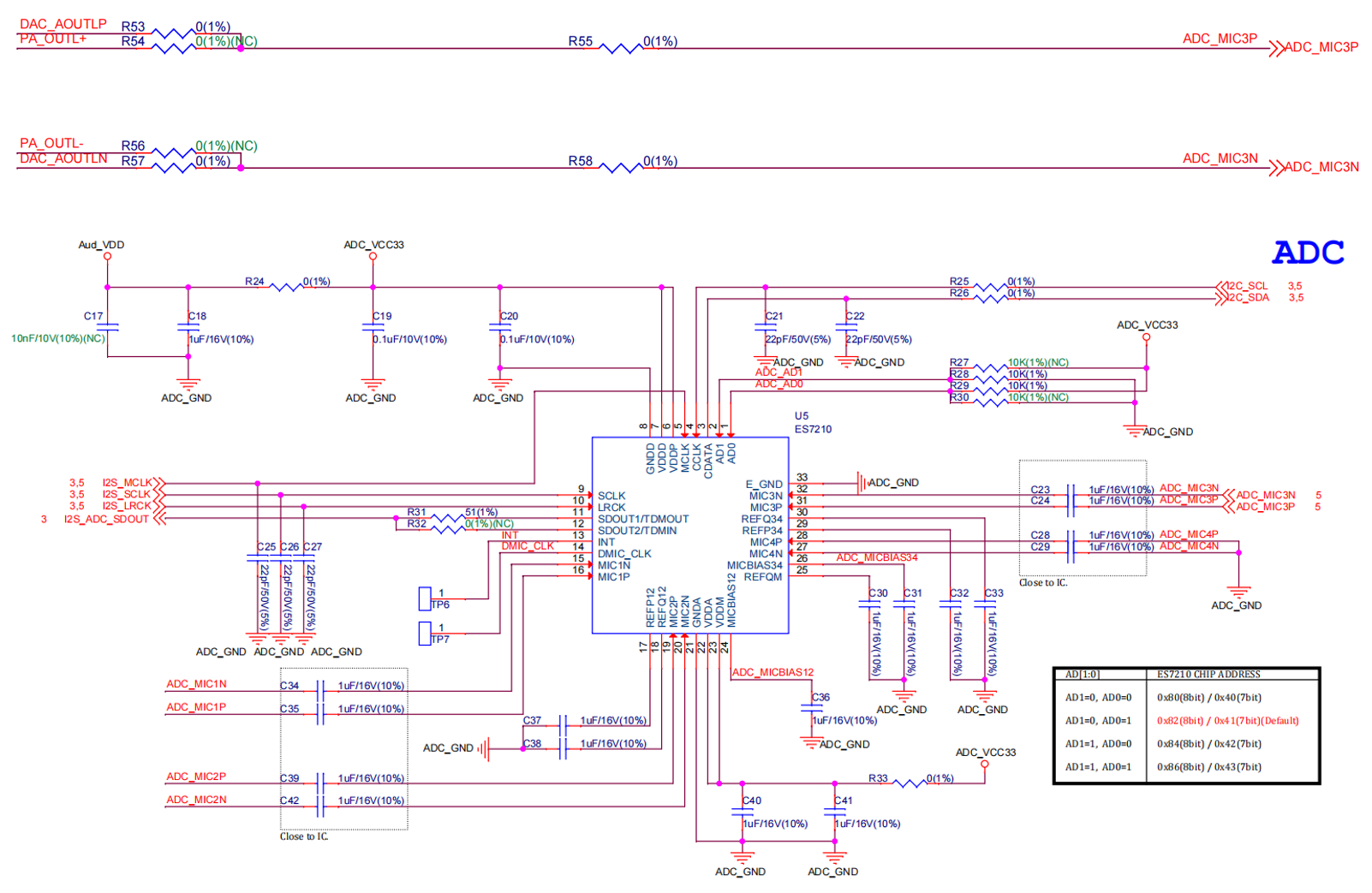

• GC9503 RGB LCD, FT5x06, ES8311/ES7210, GPIO boot button

Hardware User Guide

The complete hardware guide is available at ESP32-S3-LCD-EV-Board.

BMGR Configuration

The board definition is in esp_boards/esp32_s3_lcd_ev_board.

---
