ESP32-S3-BOX-Lite

[中文]

Hardware Overview

ESP32-S3-BOX-Lite hardware overview

Hardware Source Files

• ESP32-S3-BOX-Lite Mainboard Schematic

• ESP32-S3-BOX-Lite Mainboard PCB

• ESP32-S3-BOX-Lite Mainboard Gerber

• ESP32-S3-BOX-Lite Subboard Schematic

• ESP32-S3-BOX-Lite Subboard PCB

• ESP32-S3-BOX-Lite Subboard Gerber

• ESP32-S3-BOX-Lite Shell CAD STEP

Specifications:

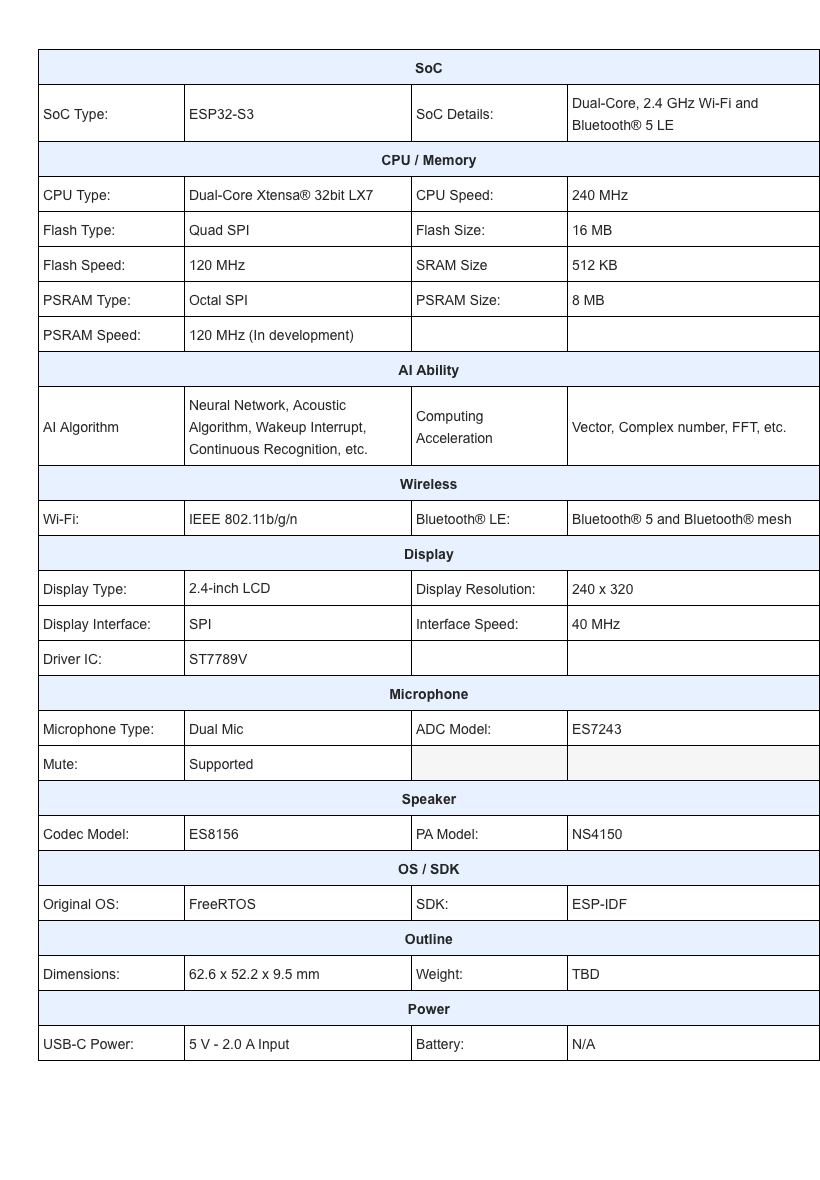

ESP32-S3-BOX-Lite specifications

Ports:

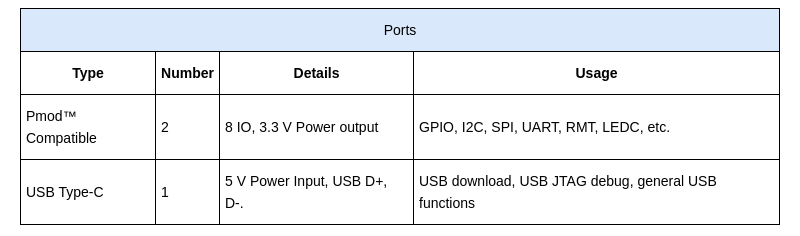

ESP32-S3-BOX-Lite interfaces

• Digilent Pmod™ Interface Specification

---
