Now since all requirements are met, the next topic guides you on how to start your first project.
This guide helps you on the first steps using ESP-IDF. Follow this guide to start a new project on the ESP32-S2 and build, flash, and monitor the device output.

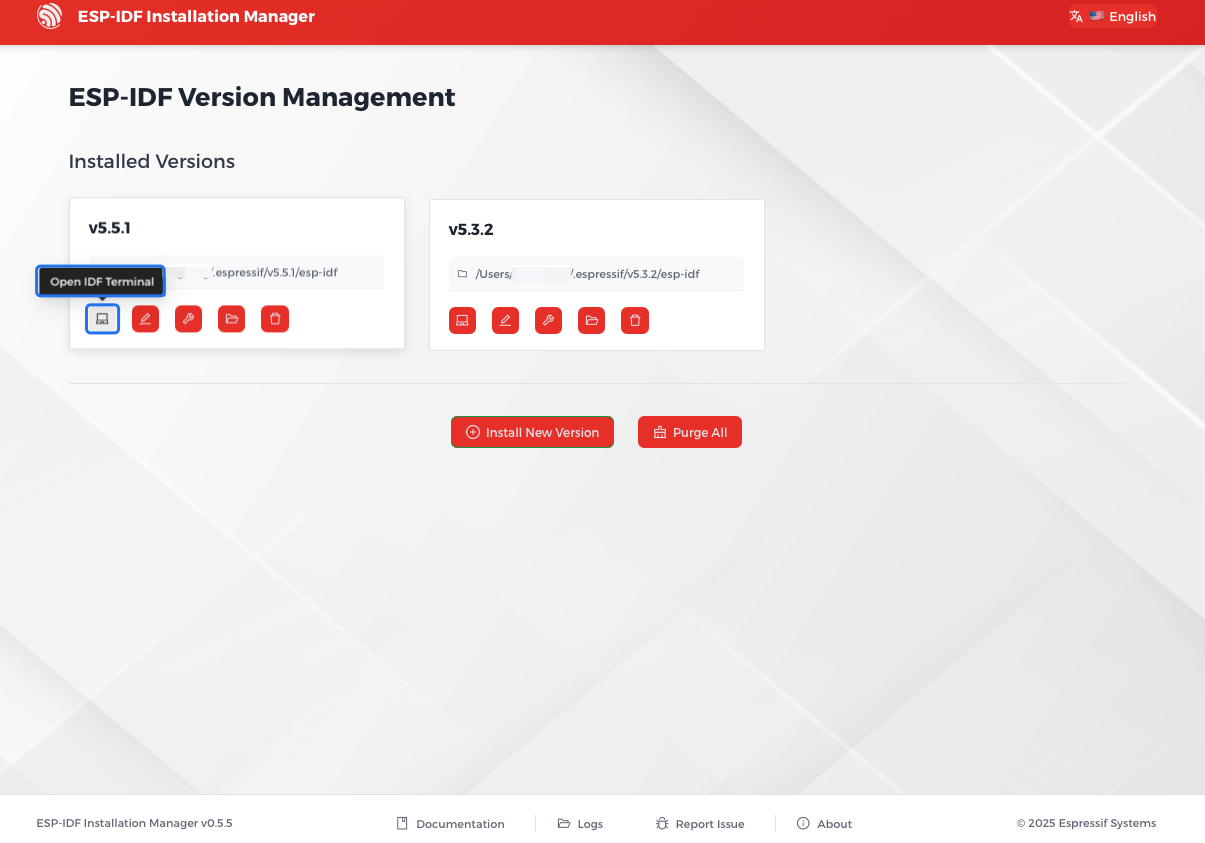

If you have not yet installed ESP-IDF, please go to Installation and follow the instruction in order to get all the software needed to use this guide.
Start a Project
The ESP-IDF build system does not support spaces in the paths to either ESP-IDF or to projects.
Copy the project get-started/hello_world to
cd %userprofile%\esp xcopy /e /i %IDF_PATH%\examples\get-started\hello_world hello_world
There is a range of example projects in the examples directory in ESP-IDF. You can copy any project in the same way as presented above and run it. It is also possible to build examples in-place without copying them first.
Connect Your Device
Now connect your ESP32-S2 board to the computer and check under which serial port the board is visible.
Serial port names start with
COM in Windows.
If you are not sure how to check the serial port name, please refer to Establish Serial Connection with ESP32-S2 for full details.
Keep the port name handy as it is needed in the next steps.
Configure Your Project
Navigate to your
hello_world directory, set ESP32-S2 as the target, and run the project configuration utility
cd %userprofile%\esp\hello_world idf.py set-target esp32s2 idf.py menuconfig
After opening a new project, you should first set the target with
idf.py set-target esp32s2. Note that existing builds and configurations in the project, if any, are cleared and initialized in this process. The target may be saved in the environment variable to skip this step at all. See Select the Target Chip: set-target for additional information.
If the previous steps have been done correctly, the following menu appears:
You are using this menu to set up project specific variables, e.g., Wi-Fi network name and password, the processor speed, etc. Setting up the project with menuconfig may be skipped for "hello_word", since this example runs with default configuration.
The colors of the menu could be different in your terminal. You can change the appearance with the option
--style. Please run
idf.py menuconfig --help for further information.
If you are using one of the supported development boards, you can speed up your development by using Board Support Package. See Additional Tips for more information.
To use the USB for flashing the ESP32-S2, you need to change the channel for the console output to USB. For the ESP32-S2, the default console output channel is the UART.
Navigate to the option
Channel for console output.
Component config ---> ESP System Settings ---> Channel for console output
Change to the option (the default is always UART):
Save the new configuration and exit the
