Add a Preview or Custom ESP-IDF Target in the IDE

[中文]

To add support for any preview or custom ESP-IDF target (such as ESP32-C5 or other targets not listed by default in the IDE), follow these steps:

Step 1: Configure Toolchain

1. Go to Preferences > C/C++ > Core Build Toolchain.

2. Under User Defined Toolchains, click Add.

3. Select GCC and configure as follows:

   • Compiler: Path to the toolchain compiler for your target, e.g., /Users/testuser/.espressif/tools/riscv32-esp-elf/esp-14.2.0_20241119/riscv32-esp-elf/bin/riscv32-esp-elf-gcc

   • Operating System: e.g., esp32c5 for ESP32-C5

   • CPU Arch: e.g., riscv32 for ESP32-C5

4. Click Finish.

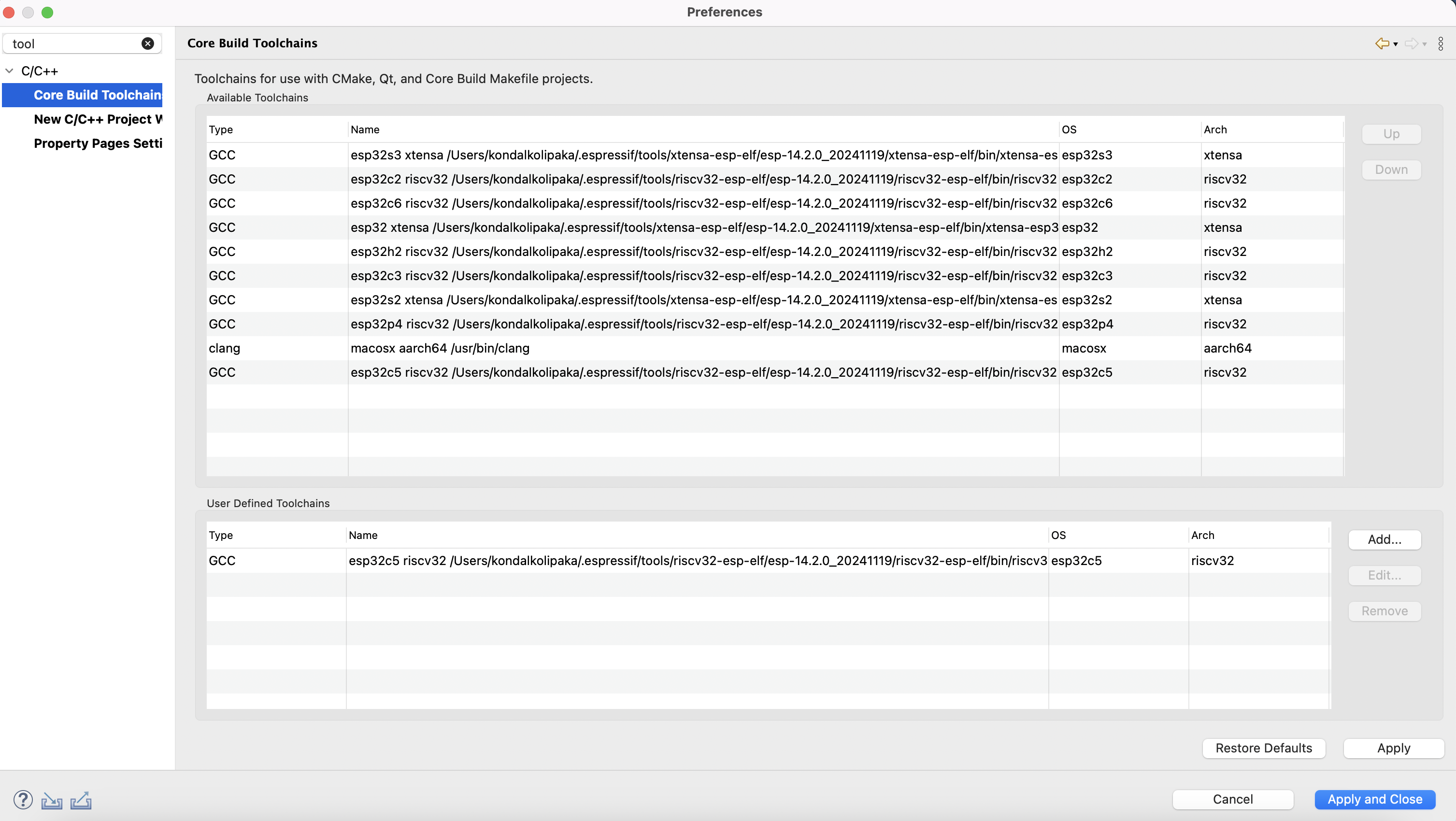

Core Build Toolchains Preferences: Adding a custom/preview target toolchain (example: ESP32-C5)

Step 2: Configure CMake Toolchain

1. Navigate to Preferences > C/C++ > CMake.

2. Click Add.

3. Browse and select the CMake toolchain file for your target (e.g., toolchain-esp32c5.cmake).

4. Choose the corresponding toolchain entry created in Step 1.

5. Click Finish.

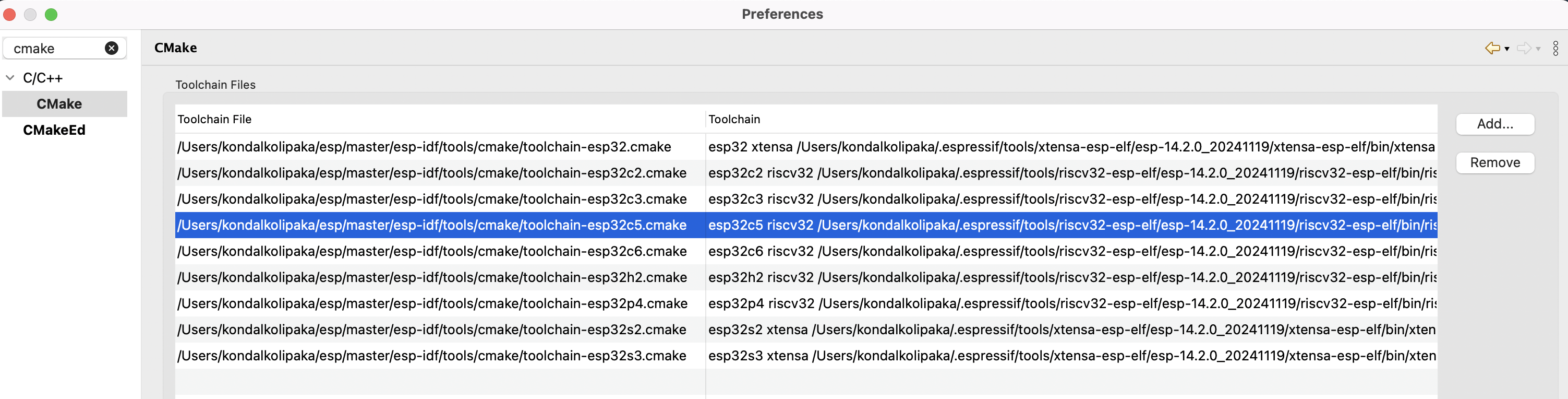

CMake Toolchain Preferences: Adding a custom/preview target toolchain file (example: ESP32-C5)

Step 3: Add Launch Target

1. From the IDE’s top toolbar target list, click New Launch Target.

2. Select ESP Target.

3. Provide the following details:

   • Name: e.g., esp32c5

   • IDF Target: e.g., esp32c5

4. Click Finish.

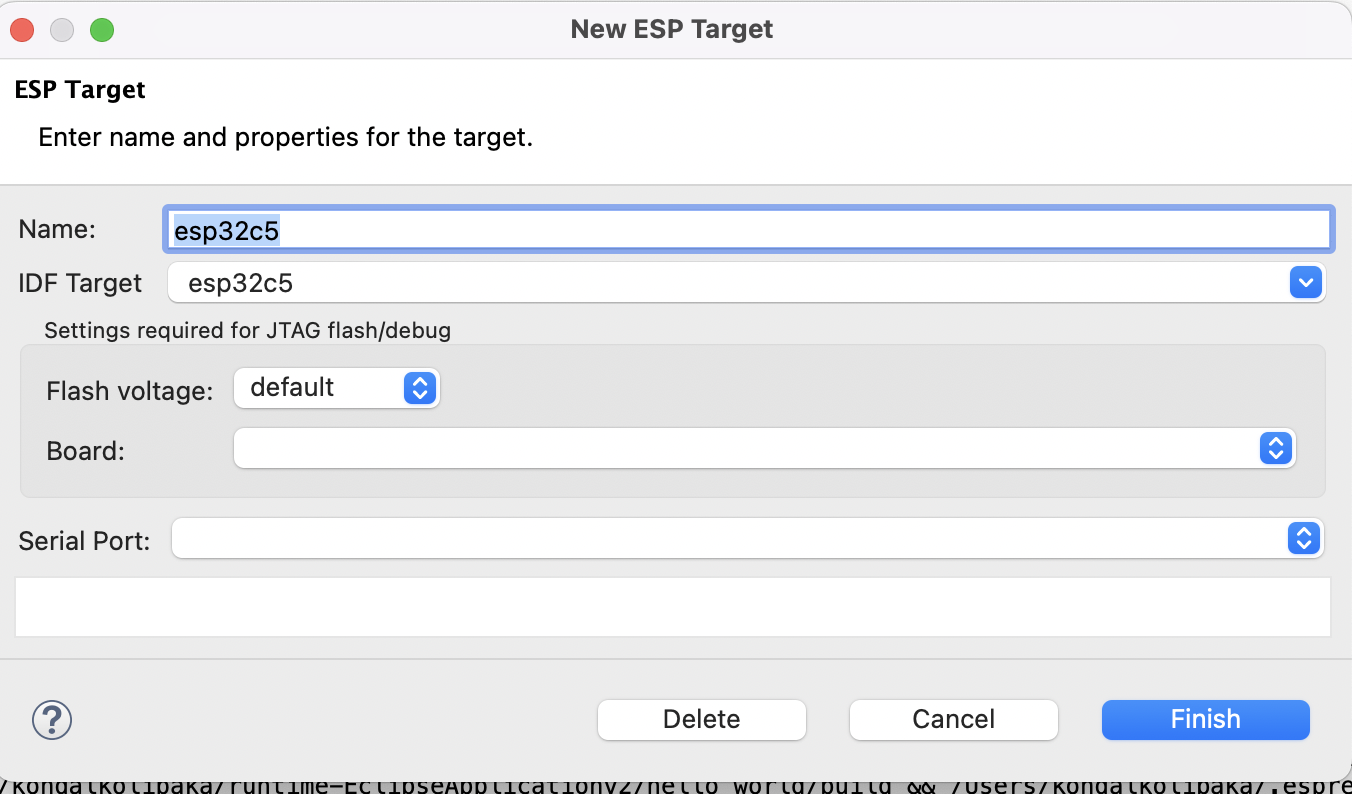

New ESP Target Dialog: Creating a launch target for a custom/preview target (example: ESP32-C5)

Step 4: Build a Project

• Create or open a project.

• Select your custom/preview target from the target list.

• Build the project.

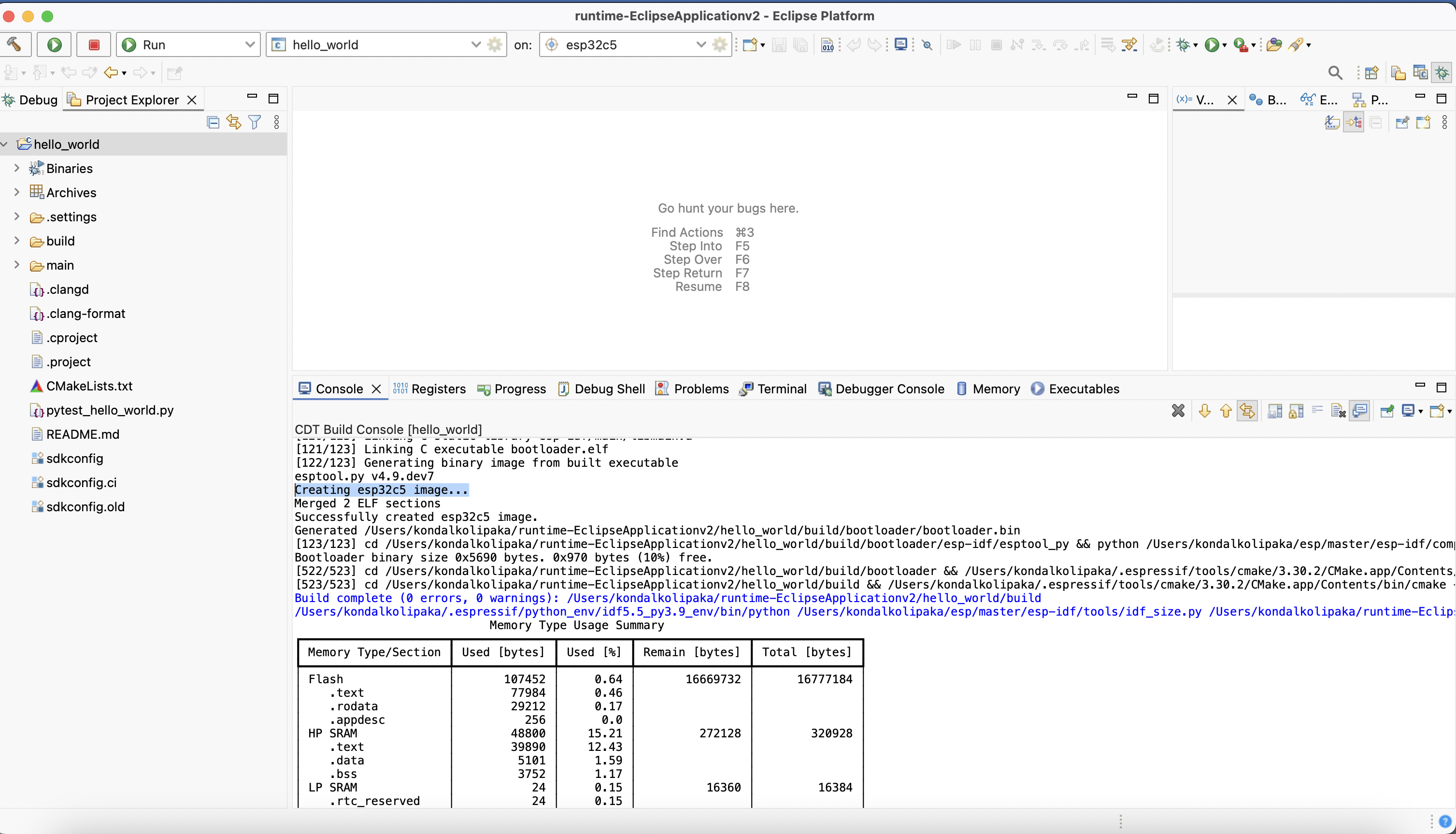

Build Output: Successfully building a project for a custom/preview target (example: ESP32-C5)
