Allocating Memory

In a no_std environment, the alloc crate is available as an option for heap allocation. This enables useful common Rust items such as Vec and Box and other collections that require heap allocation. In the some cases, alloc may be required for a dependency you wish to use.

We provide our own no_std heap allocator, esp-alloc. But before enabling it, user should understand why they might want heap allocation and the trade-offs involved.

Why Not Use a Heap?

While heap allocation offers flexibility, it comes with some costs:

  • Fragmentation: Over time, dynamic allocation can cause fragmentation: small, scattered allocations may prevent large ones even if total memory is available. This can lead to subtle runtime failures.
  • Runtime Overhead: Allocating and freeing memory incurs a computational cost, along with any overhead of the chosen allocator.

Configurable Memory Placement and Reclaimed RAM

Some Espressif chips have non-contiguous memory mapping, not all physical RAM is usable as a single, flat heap. For example, some regions are reserved for ROM code usage, and cannot be overwritten. Take the memory layout on the ESP32 for example.

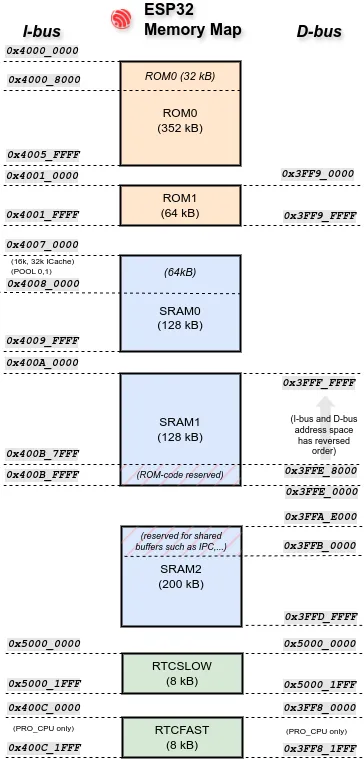

ESP32 memory map

On chips with non-contiguous memory, cfg options can be used to control where memory is placed. This also allows accessing RAM that is otherwise unavailable, such as memory occupied by the 2nd stage bootloader. For supported chips, regions like .dram2_uninit can be used as additional heap memory, optimizing available resources.

#![allow(unused)]
fn main() {
// Use 64kB in dram2_seg for the heap, which is otherwise unused.
heap_allocator!(#[link_section = ".dram2_uninit"] size: 64000);
}

⚠️ Note: Link section names such as .dram2_uninit are not stable, and may change over time. Check each releases change log to ensure you are using the right section name.

PSRAM

Our chips have a few hundred kilobytes of internal RAM, which could be insufficient for some applications. Some Espressif chips have the ability to use virtual addresses for external PSRAM (Psuedostatic RAM) memory. The external memory is usable in the same way as internal data RAM, with certain restrictions.

⚠️ Note: On Xtensa chips, atomics in PSRAM do not work correctly — they can cause data races and defeat their purpose. This means that the allocator must not be used to allocate Atomic* types - either directly or indirectly. ESP32 restrictions can be found here. This does not affect our RISC-V chips, where PSRAM works correctly with atomics.

Allocator Considerations

You can only have one global allocator but the allocator can use multiple regions (e.g. PSRAM, internal RAM or even multiple blocks of them). You can use multiple allocators with the nightly feature allocator api and with allocator api2, which esp-alloc implements.
