Schematic Checklist

Overview

The integrated circuitry of ESP32-C61 requires only 30 electrical components (resistors, capacitors, and inductors) and a crystal, as well as an SPI flash (in-package or off-package). The high integration of ESP32-C61 allows for simple peripheral circuit design. This chapter details the schematic design of ESP32-C61.

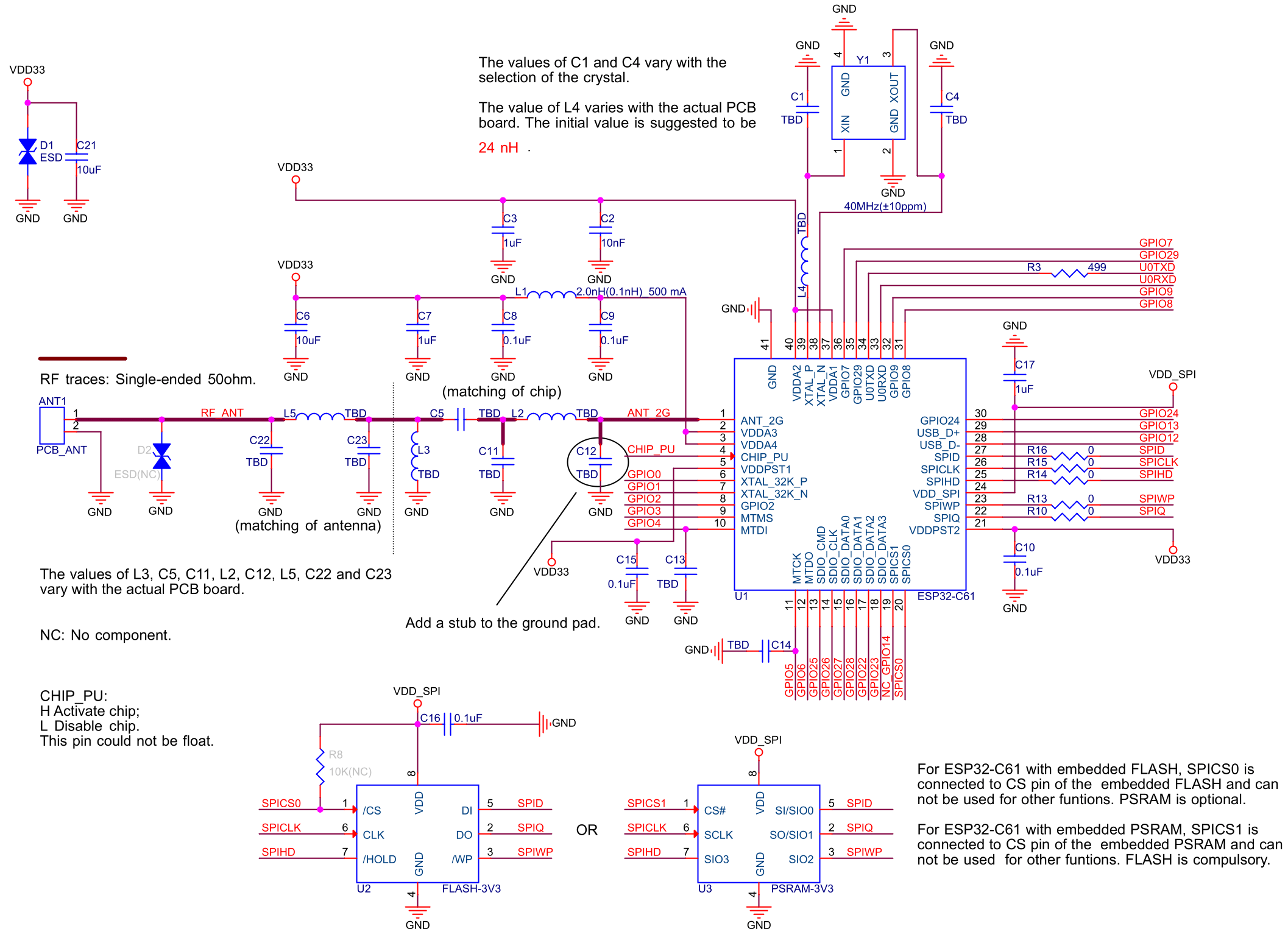

The following figure shows a reference schematic design of ESP32-C61. It can be used as the basis of your schematic design.

ESP32-C61 Reference Schematic

Any basic ESP32-C61 circuit design may be broken down into the following major building blocks:

Power supply
Chip power-up and reset timing
Flash and PSRAM
Clock source
RF
UART
Strapping pins
GPIO
ADC
SPI
SDIO
USB

The rest of this chapter details the specifics of circuit design for each of these sections.

Power Supply

The general recommendations for power supply design are:

When using a single power supply, the recommended power supply voltage is 3.3 V and the output current is no less than 500 mA.
It is suggested to add an ESD protection diode and at least 10 μF capacitor at the power entrance.

More information about power supply pins can be found in ESP32-C61 Series Datasheet > Section Power Supply.

Digital Power Supply

ESP32-C61 has pin5 VDDPST1 and pin30 VDDPST2 as the digital power supply pin(s) working in a voltage range of 3.0 V ~ 3.6 V. It is recommended to add an extra 0.1 μF decoupling capacitor close to the pin(s).

Pin VDD_SPI (pin23) can serve as the power supply for the external device at 3.3 V (typical value), provided by VDDPST2 via R_SPI. Therefore, there will be some voltage drop from VDDPST2. When the VDD_SPI outputs 3.3 V, it is recommended that users add a 1 μF capacitor close to VDD_SPI.

VDD_SPI can be connected to and powered by an external power supply.

When not serving as a power supply pin, VDD_SPI can be used as a regular GPIO.

It is recommended to use the VDD_SPI to power the external or internal flash/PSRAM.

Attention

When using VDD_SPI as the power supply pin for the in-package flash/PSRAM or external 3.3 V flash/PSRAM, considering the voltage drop mentioned above, VDDPST2 should be 3.0 V or above, so as to meet the requirements of flash/PSRAM’s working voltage.

Analog Power Supply

ESP32-C61’s VDDA1 to VDDA4 pins are the analog power supply pins, working at 3.0 V ~ 3.6 V.

For VDDA3 and VDDA4, because of the high current draw, it is highly recommended to add a separate 10 μF capacitor to both the VDDA3 and VDDA4 power rails.

Add an LC circuit on VDDA3 and VDDA4 power rails to suppress high-frequency harmonics. The inductor’s rated current is preferably 500 mA and above.

For the remaining capacitor circuits, please refer to ESP32-C61 Reference Schematic.

Chip Power-up and Reset Timing

ESP32-C61’s CHIP_PU pin can enable the chip when it is high and reset the chip when it is low.

When ESP32-C61 uses a 3.3 V system power supply, the power rails need some time to stabilize before CHIP_PU is pulled up and the chip is enabled. Therefore, CHIP_PU needs to be asserted high after the 3.3 V rails have been brought up.

To reset the chip, keep the reset voltage V_{IL_nRST} in the range of (–0.3 ~ 0.25 × VDDPST1) V. To avoid reboots caused by external interferences, make the CHIP_PU trace as short as possible.

Figure ESP32-C61 Power-up and Reset Timing shows the power-up and reset timing of ESP32-C61.

ESP32-C61 Power-up and Reset Timing

Table Description of Timing Parameters for Power-up and Reset provides the specific timing requirements.

Description of Timing Parameters for Power-up and Reset
Parameter	Description	Minimum (µs)
t_STBL	Time reserved for the power rails to stabilize before the CHIP_PU pin is pulled high to activate the chip	50
t_RST	Time reserved for CHIP_PU to stay below V_{IL_nRST} to reset the chip	50

Attention

CHIP_PU must not be left floating.
To ensure the correct power-up and reset timing, it is advised to add an RC delay circuit at the CHIP_PU pin. The recommended setting for the RC delay circuit is usually R = 10 kΩ and C = 1 μF. However, specific parameters should be adjusted based on the characteristics of the actual power supply and the power-up and reset timing of the chip.
If the user application has one of the following scenarios:
- Slow power rise or fall, such as during battery charging.
- Frequent power on/off operations.
- Unstable power supply, such as in photovoltaic power generation.
Then, the RC circuit itself may not meet the timing requirements, resulting in the chip being unable to boot correctly. In this case, additional designs need to be added, such as:
- Adding an external reset chip or a watchdog chip, typically with a threshold of around 3.0 V.
- Implementing reset functionality through a button or the main controller.

Flash and PSRAM

ESP32-C61 requires in-package or off-package flash to store application firmware and data. In-package PSRAM or off-package PSRAM is optional.

In-Package Flash and PSRAM

The tables list the pin-to-pin mapping between the chip and in-package flash/PSRAM. Please note that the following chip pins can connect at most one flash and one PSRAM. That is to say, when there is only flash in the package, the pin occupied by flash can only connect PSRAM and cannot be used for other functions; when there is only PSRAM, the pin occupied by PSRAM can only connect flash; when there are both flash and PSRAM, the pin occupied cannot connect any more flash or PSRAM.

Pin Mapping Between Chip and Off-Package Flash for ESP32-C61 1
Pin No	Pin Name	Single SPI flash	Dual SPI flash	Quad SPI flash
26	SPICLK	CLK	CLK	CLK
20	SPICS0 2	CS#	CS#	CS#
27	SPID	MOSI	SIO0 3	SIO0
22	SPIQ	MISO	SIO1	SIO1
23	SPIWP	WP#		SIO2
25	SPIHD	HOLD#		SIO3

1: An off-package flash can only be connected if the chip variant does not have in-package flash.
2: SPICS0 is used to access flash
3: SIO: Serial Data Input and Output

Pin Mapping Between Chip and Off-Package PSRAM for ESP32-C61 4
Pin No	Pin Name	Single SPI PSRAM	Quad SPI PSRAM
26	SPICLK	CLK	CLK
19	SPICS1 5	CE#	CE#
27	SPID	SI 6	SIO0
22	SPIQ	SO 7	SIO1
23	SPIWP		SIO2
25	SPIHD		SIO3

4: An off-package PSRAM can only be connected if the chip variant does not have in-package PSRAM. If PSRAM is not connected, these pins cannot be used as GPIO pins.
5: SPICS1 is used to access PSRAM
6: SI: Serial Data Input, equivalent to MOSI
7: SO: Serial Data Output, equivalent to MISO

Off-Package Flash and PSRAM

To reduce the risk of software compatibility issues, please use flash and PSRAM models officially validated by Espressif. For detailed model selection, consult the sales or technical support team. It is recommended to add zero-ohm resistor footprints in series on the SPI communication lines as shown in Figure ESP32-C61 Reference Schematic. These footprints provide flexibility for future adjustments, such as tuning drive strength, mitigating RF interference, correcting signal timing, and reducing noise, if needed.

Clock Source

ESP32-C61 supports two external clock sources:

External crystal clock source (Compulsory)
RTC clock source (Optional)

External Crystal Clock Source (Compulsory)

The ESP32-C61 firmware only supports 40 MHz crystal.

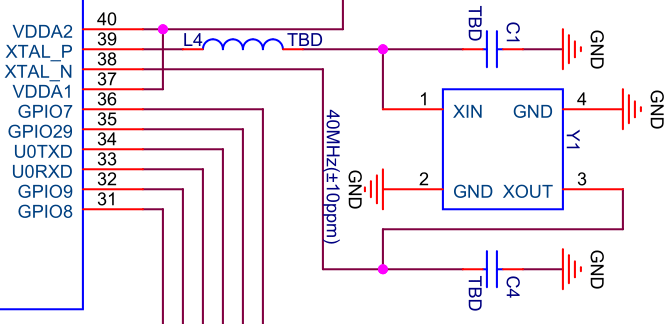

The circuit for the crystal is shown in Figure ESP32-C61 Schematic for External Crystal. Note that the accuracy of the selected crystal should be within ±10 ppm.

ESP32-C61 Schematic for External Crystal

Please add a series component on the XTAL_P clock trace. Initially, it is suggested to use an inductor of 24 nH to reduce the impact of high-frequency crystal harmonics on RF performance, and the value should be adjusted after an overall test.

The initial values of external capacitors C1 and C2 can be determined according to the formula:

\[C_L = \frac{C1 \times C2} {C1+C2} + C_{stray}\]

where the value of C_L (load capacitance) can be found in the crystal’s datasheet, and the value of C_stray refers to the PCB’s stray capacitance. The values of C1 and C2 need to be further adjusted after an overall test as below:

Select TX tone mode using the Certification and Test Tool.
Observe the 2.4 GHz signal with a radio communication analyzer or a spectrum analyzer and demodulate it to obtain the actual frequency offset.
Adjust the frequency offset to be within ±10 ppm (recommended) by adjusting the external load capacitance.

When the center frequency offset is positive, it means that the equivalent load capacitance is small, and the external load capacitance needs to be increased.

When the center frequency offset is negative, it means the equivalent load capacitance is large, and the external load capacitance needs to be reduced.

External load capacitance at the two sides are usually equal, but in special cases, they may have slightly different values.

Note

Defects in the manufacturing of crystal (for example, large frequency deviation of more than ±10 ppm, unstable performance within the operating temperature range, etc) may lead to the malfunction of ESP32-C61, resulting in a decrease of the RF performance.
It is recommended that the amplitude of the crystal is greater than 500 mV.
When Wi-Fi or Bluetooth connection fails, after ruling out software problems, you may follow the steps mentioned above to ensure that the frequency offset meets the requirements by adjusting capacitors at the two sides of the crystal.

RTC Clock Source (Optional)

ESP32-C61 supports an external 32.768 kHz crystal to act as the RTC clock. The external RTC clock source enhances timing accuracy and consequently decreases average power consumption, without impacting functionality.

Figure ESP32-C61 Schematic for 32.768 kHz Crystal shows the schematic for the external 32.768 kHz crystal.

ESP32-C61 Schematic for 32.768 kHz Crystal

Please note the requirements for the 32.768 kHz crystal:

Equivalent series resistance (ESR) ≤ 70 kΩ.

Load capacitance at both ends should be configured according to the crystal’s specification.

The parallel resistor R is used for biasing the crystal circuit (5 MΩ < R ≤ 10 MΩ).

The resistor must be populated.

If the RTC clock source is not required, then the pins for the 32.768 kHz crystal can be used as GPIOs.

RF

RF Circuit

ESP32-C61’s RF circuit is mainly composed of three parts, the RF traces on the PCB board, the chip matching circuit, the antenna and the antenna matching circuit. Each part should meet the following requirements:

For the RF traces on the PCB board, 50 Ω impedance control is required.
For the chip matching circuit, it must be placed close to the chip. A CLCCL structure is preferred.
- The CLCCL structure forms a bandpass filter, which is mainly used to adjust impedance points, suppress high-frequency harmonics, and suppress low-frequency noise.

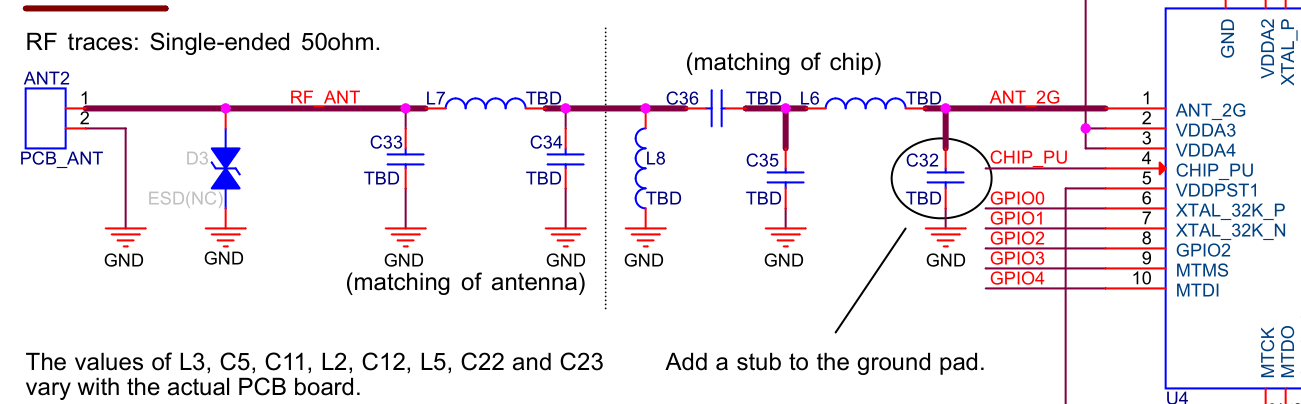

- The RF matching circuit is shown in Figure ESP32-C61 Schematic for RF Matching.
For the antenna and the antenna matching circuit, to ensure radiation performance, the antenna’s characteristic impedance must be around 50 Ω. Adding a CLC matching circuit near the antenna is recommended to adjust the antenna. However, if the available space is limited and the antenna impedance point can be guaranteed to be 50 Ω by simulation, then there is no need to add a matching circuit near the antenna.

It is recommended to include ESD protection devices for the antenna to mitigate electrostatic interference.

Note

If you plan to apply for FCC/NCC certification, it is recommended to reserve capacitors to ground on GPIO4 and GPIO5 to effectively suppress harmonic interference. For customers not involved in such certifications, this is not necessary. If using the ANT2 of the ESP32-C61-WROOM-1U module, please add a CLC circuit at the ANT2 pin to suppress low-frequency noise.

ESP32-C61 Schematic for RF Matching

RF Tuning

The RF matching parameters vary with the board, so the ones used in Espressif modules could not be applied directly. Follow the instructions below to do RF tuning.

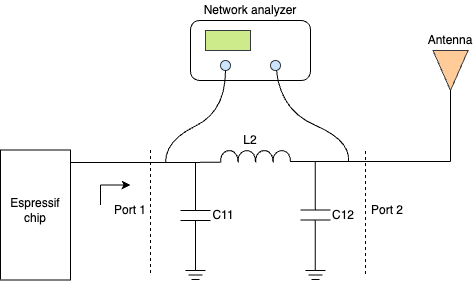

Figure ESP32-C61 RF Tuning Diagram shows the general process of RF tuning.

ESP32-C61 RF Tuning Diagram

In the matching circuit, define the port near the chip as Port 1 and the port near the antenna as Port 2. S11 describes the ratio of the signal power reflected back from Port 1 to the input signal power, the transmission performance is best if the matching impedance is conjugate to the chip impedance. S21 is used to describe the transmission loss of signal from Port 1 to Port 2. If S11 is close to the chip conjugate point 35+j0 and S21 is less than -35 dB at 4.8 GHz and 7.2 GHz, the matching circuit can satisfy transmission requirements.

Connect the two ends of the matching circuit to the network analyzer, and test its signal reflection parameter S11 and transmission parameter S21. Adjust the values of the components in the circuit until S11 and S21 meet the requirements. If your PCB design of the chip strictly follows the PCB design stated in Chapter PCB Layout Design, you can refer to the value ranges in Table Recommended Value Ranges for Components to debug the matching circuit.

Recommended Value Ranges for Components
Reference Designator	Recommended Value Range	Serial No.
C11	1.2 ~ 1.8 pF	GRM0335C1H1RXBA01D
L2	2.4 ~ 3.0 nH	LQP03TN2NXB02D
C12	1.8 ~ 1.2 pF	GRM0335C1H1RXBA01D

Please use 0201 packages for RF matching components and add a stub to the first capacitor in the matching circuit at the chip end.

Note

If RF function is not required, then the RF pin can be left floating.

UART

ESP32-C61 includes 3 UART interfaces, UART0, UART1, and UART2. U0TXD and U0RXD are GPIO11 and GPIO10 by default. Other UART signals can be mapped to any available GPIOs by software configurations.

Usually, UART0 is used as the serial port for download and log printing. For instructions on download over UART0, please refer to Section Download Guidelines. It is recommended to connect a 499 Ω series resistor to the U0TXD line to suppress harmonics.

If possible, use other UART interfaces as serial ports for communication. For these interfaces, it is suggested to add a series resistor to the TX line to suppress harmonics.

SPI

When using the SPI function, to improve EMC performance, add a series resistor (or ferrite bead) and a capacitor to ground on the SPI_CLK trace. If space allows, it is recommended to also add a series resistor and capacitor to ground on other SPI traces. Ensure that the RC/LC components are placed close to the pins of the chip or module.

Strapping Pins

At each startup or reset, a chip requires some initial configuration parameters, such as in which boot mode to load the chip, etc. These parameters are passed over via the strapping pins. After reset, the strapping pins work as normal function pins.

GPIO7, GPIO8, GPIO9, MTMS, and MTDI are strapping pins.

All the information about strapping pins is covered in ESP32-C61 Series Datasheet > Chapter Boot Configurations.

In this section, we will mainly cover the strapping pins related to boot mode.

After chip reset is released, the combination of GPIO8 and GPIO9 controls the boot mode. See Table Boot Mode Control.

Boot Mode Control
Boot Mode	GPIO8	GPIO9
SPI Boot (default)	Any value	1
Joint Download Boot	1	0

Joint Download Boot supports the following download methods:

USB-Serial-JTAG Download Boot

UART Download Boot

SPI Slave 2.0 Download Boot

Signals applied to the strapping pins should have specific setup time and hold time. For more information, see Figure Setup and Hold Times for Strapping Pins and Table Description of Timing Parameters for Strapping Pins.

Setup and Hold Times for Strapping Pins

Description of Timing Parameters for Strapping Pins
Parameter	Description	Minimum (ms)
t_SU	Time reserved for the power rails to stabilize before the chip enable pin (CHIP_PU) is pulled high to activate the chip.	0
t_H	Time reserved for the chip to read the strapping pin values after CHIP_PU is already high and before these pins start operating as regular IO pins.	3

Attention

It is recommended to place a pull-up resistor at the GPIO9 pin.
Do not add high-value capacitors at GPIO9, or the chip may enter download mode.

GPIO

The pins of ESP32-C61 can be configured via IO MUX or GPIO matrix. IO MUX provides the default pin configurations (see ESP32-C61 Series Datasheet > Appendix ESP32-C61 Consolidated Pin Overview), whereas the GPIO matrix is used to route signals from peripherals to GPIO pins. For more information about IO MUX and GPIO matrix, please refer to ESP32-C61 Technical Reference Manual > Chapter IO MUX and GPIO Matrix.

Some peripheral signals have already been routed to certain GPIO pins, while some can be routed to any available GPIO pins. For details, please refer to ESP32-C61 Series Datasheet > Section Peripherals.

When using GPIOs, please:

Pay attention to the states of strapping pins during power-up.
Pay attention to the default configurations of the GPIOs after reset. The default configurations can be found in the table below. It is recommended to add a pull-up or pull-down resistor to pins in the high-impedance state or enable the pull-up and pull-down during software initialization to avoid extra power consumption.
Avoid using the pins already occupied by flash/PSRAM.
In Deep-sleep mode, only LP GPIOs can be controlled, that is, the GPIOs whose power supply pin is VDDPST1 as listed in the table below.

IO Pin Default Functions
Pin No	Pin Name	Pin Providing Power	At Reset	After Reset
6	XTAL_32K_P	VDDPST1
7	XTAL_32K_N	VDDPST1
8	GPIO2	VDDPST1
9	MTMS	VDDPST1	IE	IE
10	MTDI	VDDPST1	IE	IE
11	MTCK	VDDPST1		IE
12	MTDO	VDDPST1		IE
13	SDIO_CMD	VDDPST2		IE
14	SDIO_CLK	VDDPST2		IE
15	SDIO_DATA0	VDDPST2		IE
16	SDIO_DATA1	VDDPST2		IE
17	SDIO_DATA2	VDDPST2		IE
18	SDIO_DATA3	VDDPST2		IE
19	SPICS1	VDD_SPI/VDDPST2
20	SPICS0	VDD_SPI/VDDPST2
22	SPIQ	VDD_SPI/VDDPST2
23	SPIWP	VDD_SPI/VDDPST2
24	VDD_SPI	VDDPST2
25	SPIHD	VDD_SPI/VDDPST2
26	SPICLK	VDD_SPI/VDDPST2
27	SPID	VDD_SPI/VDDPST2
28	USB_D-	VDDPST2		IE
29	USB_D+	VDDPST2	USB_PU	IE,USB_PU
30	GPIO24	VDDPST2
31	GPIO8	VDDPST2	IE	IE
32	GPIO9	VDDPST2	IE,WPU	IE,WPU
33	U0RXD	VDDPST2		IE,WPU
34	U0TXD	VDDPST2		IE,WPU
35	GPIO29	VDDPST2
36	GPIO7	VDDPST2	IE	IE

IE – input enabled
WPU – internal weak pull-up resistor enabled
USB_PU – USB pull-up resistor enabled

ADC

Please add a 0.1 μF filter capacitor between ESP pins and ground when using the ADC function to improve accuracy.

ADC GPIOs are shown in the table below.

ADC Functions
Pin No	IO Pin Name	ADC Function
7	XTAL_32K_N	ADC1_CH0
9	MTMS	ADC1_CH1
10	MTDI	ADC1_CH2
11	MTCK	ADC1_CH3

The calibrated ADC results after hardware calibration and software calibration are shown in the list below. For higher accuracy, you may implement your own calibration methods.

When ATTEN=0 and the effective measurement range is 0 ~ 1000 mV, the total error is ±10 mV.
When ATTEN=1 and the effective measurement range is 0 ~ 1300 mV, the total error is ±10 mV.
When ATTEN=2 and the effective measurement range is 0 ~ 1900 mV, the total error is ±12 mV.
When ATTEN=3 and the effective measurement range is 0 ~ 3300 mV, the total error is ±15 mV.

SDIO

ESP32-C61 series has only one SDIO slave controller that conforms to the industry-standard SDIO Specification Version 2.0. SDIO should be connected to specific GPIOs, namely SDIO_CMD, SDIO_CLK, SDIO_DATA0, SDIO_DATA1, SDIO_DATA2, and SDIO_DATA3. Please add a pull-up resistor to these GPIOs, and preferably reserve a series resistor on each trace.

USB

ESP32-C61 integrates a USB Serial/JTAG controller that supports USB 2.0 full-speed device.

GPIO12 and GPIO13 can be used as D- and D + of USB respectively. It is recommended to populate 22/33 ohm series resistors between the mentioned pins and the USB connector. Also, reserve a footprint for a capacitor to ground on each trace. Note that both components should be placed close to the chip.

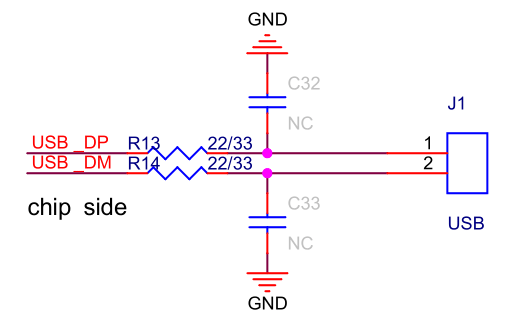

The USB RC circuit is shown in Figure ESP32-C61 USB RC Schematic.

ESP32-C61 USB RC Schematic

Note that upon power-up, the USB_D+ signal will fluctuate between high and low states. The high-level signal is relatively strong and requires a robust pull-down resistor to drive it low. Therefore, if you need a stable initial state, adding an external pull-up resistor is recommended to ensure a consistent high-level output voltage at startup.

ESP32-C61 also supports download functions and log message printing via USB. For details please refer to Section Download Guidelines.
