Chip and Board Support
ESP-VISION documentation is built separately for each supported chip. Select the chip used by the board firmware so that the documented modules and APIs match the default build.
Supported Development Boards
Note
Current standard prebuilt ESP32-P4 firmware supports silicon revisions v3.1–v3.99. This is the chip revision reported by esptool, not a board or module silkscreen version. Check the exact image’s revision bounds before flashing; a board name or a generic v3.x label alone is insufficient.
No prebuilt firmware is provided here for ESP32-P4 v1.3. Users who need it must build and validate their own firmware: select the matching board, enable CONFIG_ESP32P4_SELECTS_REV_LESS_V3 in menuconfig, choose a minimum revision compatible with the chip, and rebuild both the bootloader and application. IDF’s pre-v3 and v3.x targets are mutually incompatible. Do not force-flash a v3.x image or patch its revision header to bypass checks.
Picture |
Board |
Chip |
ESP-VISION support |
|---|---|---|---|
|

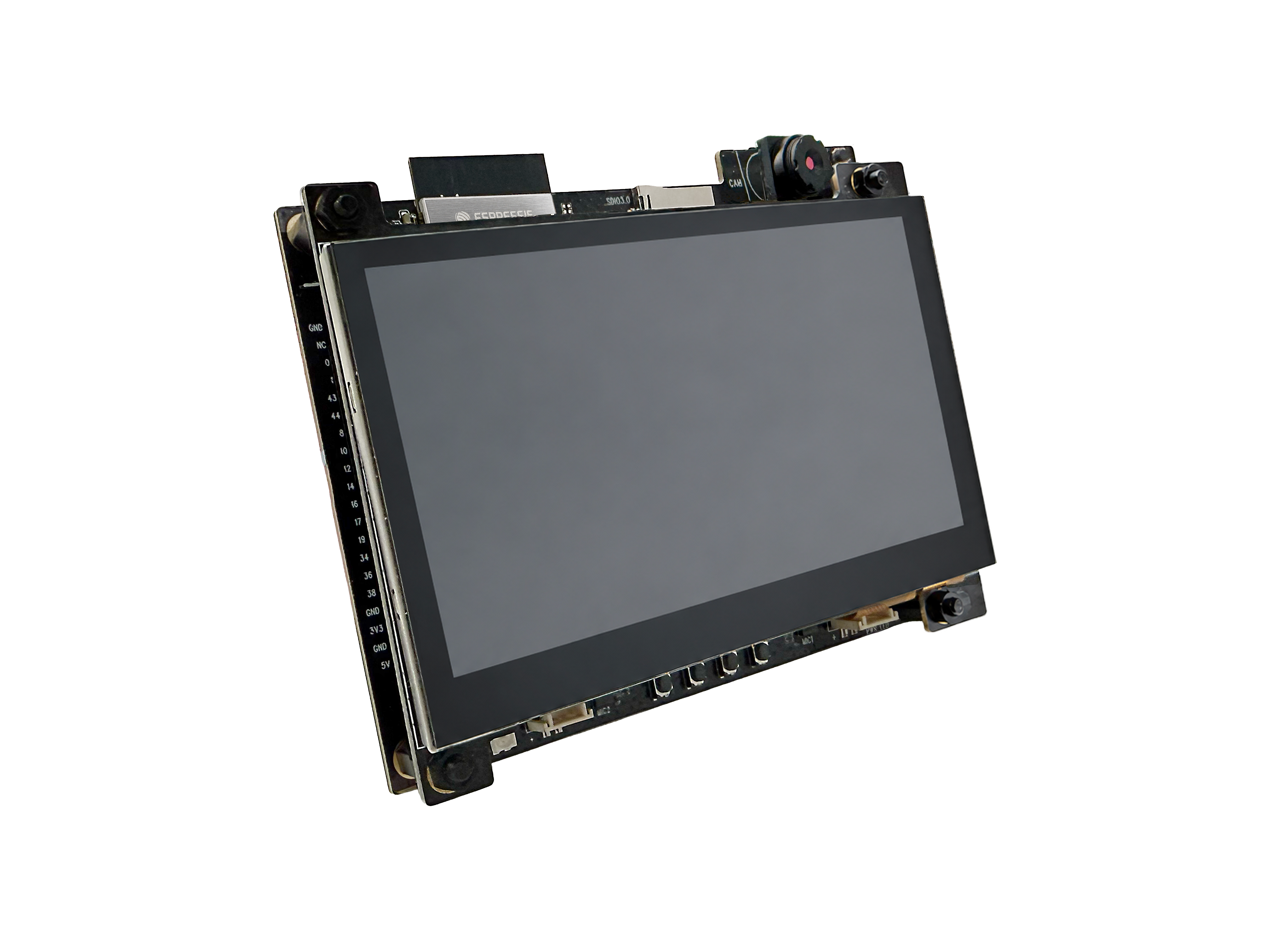

ESP32-S31-CHATBOT |
|
Supported | Modules: |
|
|
Supported | Modules: |
|
|
|
Supported | Modules: |
|
|
|
Supported | Modules: |
|
|
|
Supported | Modules: |
|
|
|
Supported | Modules: |
|
|
|
Supported | Modules: |
|
|
|
Supported | Modules: |
Note
The support summary is generated from mpconfigport.h, each board mpconfigboard.h and imlib_config.h, and the chip-specific module selection.
Chip Versus Board Capabilities
The selected chip controls chip-level source selection. For example, h264 and rtsp are added by micropython.cmake only when IDF_TARGET is esp32p4. A board profile can further enable or disable features such as the ZXing-C++ barcode backend through boards/<BOARD>/board.cmake.
The API navigation and chip-specific symbol conditions are generated from these build files. This makes micropython.cmake, boards/*/port/mpconfigboard.cmake, and board board.cmake files authoritative for ESP-VISION API availability.
Standard MicroPython Features
Standard MicroPython features use a separate configuration path: overlay/micropython/ports/esp32/mpconfigport.h plus each board’s mpconfigboard.h. The table above indexes the explicitly enabled baseline features from those files, while additional conditions can depend on chip capabilities and firmware configuration.
The current board headers disable Bluetooth and ESP-NOW; the S31 board additionally disables machine.ADC and machine.ADCBlock. A board must still provide suitable networking hardware and firmware configuration before network.WLAN can connect.
Because these conditions are not determined solely by the chip, the chip selector filters the ESP-VISION API reference but does not represent a complete standard MicroPython module manifest. Build-environment compatibility details are maintained in the project README.
The chip documentation describes the defaults shared by the current board profiles. A custom board or modified build option can therefore differ from the published chip page. When that happens, the firmware configuration is authoritative.
WebREPL and EV-MUX Network Control
Traditional MicroPython WebREPL is not supported by the current ESP-VISION EV-MUX runtime, including ESP-IDF v5.5.6 builds. Some builds enable WebSocket and the internal _webrepl component. The upstream webrepl Python service is absent from some board profiles, including ESP32_P4X_EYE; ESP32_S3_EYE includes it in its manifest. Neither its presence nor the compile flags establish terminal or file-transfer compatibility with EV-MUX.
EV-MUX routes Python input, output and files through one authorized owner, with link, lease and VM-epoch checks. A traditional WebREPL dupterm service does not implement this ownership contract. Adding its Python package or mirroring raw terminal bytes is not a supported workaround. Use Application API reference with a TCP transport for network control. The retained example/07-Network/00-WebREPL/webrepl.py entry exits with this explanation before changing Wi-Fi or opening a listener.
