Asynchronous CRC (Async CRC)

[中文]

This document introduces the features of the Asynchronous CRC (Async CRC) driver in ESP-IDF. The table of contents is as follows:

Overview

The Async CRC driver provides hardware-accelerated CRC calculation using the General DMA peripheral. It supports both AHB-GDMA and AXI-GDMA backends, offering flexible CRC computation with configurable polynomial, initial value, bit reversal options, and final XOR processing.

Key capabilities include:

• Hardware-accelerated CRC calculation using General DMA

• Support for 8-bit, 16-bit, and 32-bit CRC algorithms

• Asynchronous API with callback notifications

• Blocking API with timeout support

• Request queuing with configurable backlog size

• Support for both AHB and AXI DMA backends

Application scenarios include:

• Data integrity verification for communication protocols

• File and firmware checksum calculation

• Network packet validation

• Storage data verification

Quick Start

This section provides a concise overview of how to use the Async CRC driver. Through practical examples, it demonstrates how to initialize the driver, configure CRC parameters, and perform both asynchronous and blocking CRC calculations.

The typical usage flow for async CRC is as follows:

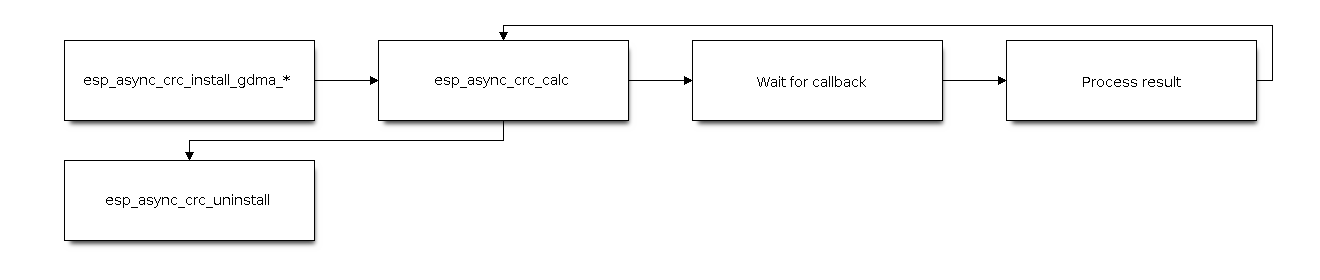

Async CRC driver's general usage flow (click to enlarge)

Creating and Installing the Driver

First, you need to install the Async CRC driver. The driver supports both AHB-GDMA and AXI-GDMA backends, depending on your chip's capabilities:

async_crc_handle_t crc_hdl = NULL;
async_crc_config_t config = {
    .backlog = 8,          // Maximum pending requests in queue
    .dma_burst_size = 16,  // DMA burst size in bytes
};

// Install with AHB-GDMA backend (if available)
ESP_ERROR_CHECK(esp_async_crc_install_gdma_ahb(&config, &crc_hdl));

// Or install with AXI-GDMA backend (if available)
// ESP_ERROR_CHECK(esp_async_crc_install_gdma_axi(&config, &crc_hdl));

Note

Choosing Between AHB-GDMA and AXI-GDMA Backends

The backend choice depends on your chip's capabilities and performance requirements:

• AHB-GDMA: Available on most ESP chips. Connects to the AHB bus, suitable for general-purpose DMA operations. Best for:

  • Standard performance requirements

  • Compatibility across most ESP chip variants

• AXI-GDMA: Available on higher-end ESP chips with AXI bus support. Provides higher bandwidth and better performance for memory-intensive operations. Best for:

  • High-throughput CRC calculations

  • Processing large amounts of data

  • Applications requiring maximum performance

  • Accessing external memory (PSRAM) with better efficiency

When creating a driver instance, you need to configure:

• backlog: Maximum number of pending CRC requests that can be queued. Higher values use more memory but provide better throughput for bursty workloads.

• dma_burst_size: DMA transfer burst size in bytes.

The driver handle crc_hdl is an opaque pointer that you use for all subsequent operations.

Performing Asynchronous CRC Calculation

The async API allows you to queue CRC calculations without blocking:

static bool crc_complete_callback(async_crc_handle_t crc_hdl, async_crc_event_data_t *edata, void *cb_args)
{
    uint32_t result = edata->crc_result;
    // Further process the CRC result
    // e.g., send to a task via queue, log it, etc.
    return false;
}

// Configure CRC parameters for CRC-32
async_crc_params_t params = {
    .width = 32,
    .polynomial = 0x04C11DB7,
    .init_value = 0xFFFFFFFF,
    .final_xor_value = 0xFFFFFFFF,
    .reverse_input = true,
    .reverse_output = true,
};

// Start async CRC calculation
const char *data = "Hello, World!";
size_t data_len = strlen(data);

ESP_ERROR_CHECK(esp_async_crc_calc(crc_hdl, data, data_len, &params, crc_complete_callback, NULL));

The callback function is invoked in interrupt context when the CRC calculation completes. The callback receives:

• crc_hdl: The driver handle

• edata: Event data containing the CRC result

• cb_args: User-defined argument passed during esp_async_crc_calc

Performing Blocking CRC Calculation

For simpler use cases or when async operations are not required, use the blocking API:

uint32_t crc_result = 0;
async_crc_params_t params = {
    .width = 32,
    .polynomial = 0x04C11DB7,
    .init_value = 0xFFFFFFFF,
    .final_xor_value = 0xFFFFFFFF,
    .reverse_input = true,
    .reverse_output = true,
};

const char *data = "Hello, World!";
size_t data_len = strlen(data);

// Blocking CRC with 1000ms timeout
ESP_ERROR_CHECK(esp_crc_calc_blocking(crc_hdl, data, data_len, &params, 1000, &crc_result));

printf("CRC result: 0x%08X\n", crc_result);

The blocking API supports:

• timeout_ms >= 0: Wait for specified milliseconds

• timeout_ms < 0: Wait indefinitely

Uninstalling the Driver

When the driver is no longer needed:

ESP_ERROR_CHECK(esp_async_crc_uninstall(crc_hdl));

The uninstall function returns ESP_ERR_INVALID_STATE if there are pending operations or if the CRC engine is busy. Ensure all operations complete before uninstalling.

CRC Parameter Configuration

The Async CRC driver supports flexible CRC algorithm configuration through the async_crc_params_t structure.

CRC Width

The async_crc_params_t::width field specifies the CRC bit width:

• 8: 8-bit CRC (e.g., CRC-8, CRC-8/MAXIM)

• 16: 16-bit CRC (e.g., CRC-16/CCITT, CRC-16/IBM)

• 32: 32-bit CRC (e.g., CRC-32, CRC-32/BZIP2)

Polynomial

The async_crc_params_t::polynomial field specifies the CRC polynomial in hexadecimal format. Common polynomial values include:

• CRC-32: 0x04C11DB7

• CRC-16/CCITT: 0x1021

• CRC-16/IBM: 0x8005

• CRC-8/MAXIM: 0x31

Initial Value

The async_crc_params_t::init_value field sets the initial CRC value before processing. Common initial values:

• 0xFFFFFFFF for CRC-32

• 0x0000 for many CRC-16 variants

• 0x00 for many CRC-8 variants

Final XOR Value

The async_crc_params_t::final_xor_value field specifies a value to XOR with the final CRC result. This is commonly 0xFFFFFFFF for CRC-32 but can be 0x0000 for some variants.

Bit Reversal Options

• async_crc_params_t::reverse_input If true, reverses the bit order of each input byte before processing

• async_crc_params_t::reverse_output If true, reverses the bit order of the final CRC result before applying the final XOR

These options affect the reflection settings for different CRC algorithms.

Common CRC Configurations

The following table lists common CRC configurations:

CRC Algorithm	Width	Polynomial	Initial Value	Final XOR	Reverse Input	Reverse Output
CRC-32	32	0x04C11DB7	0xFFFFFFFF	0xFFFFFFFF	true	true
CRC-16/CCITT	16	0x1021	0x0000	0x0000	false	false
CRC-16/IBM	16	0x8005	0x0000	0x0000	true	true
CRC-8/MAXIM	8	0x31	0x00	0x00	true	true

Thread Safety

The Async CRC driver is designed to be thread-safe and can be used from multiple tasks. The driver features a race-free Finite State Machine (FSM) architecture that ensures thread safety and proper handling of concurrent CRC requests.

Thread Safety Guarantees

• All public APIs can be called from different tasks simultaneously

• The driver uses atomic operations and critical sections for internal state protection

• Request queuing ensures that concurrent calls are properly serialized

ISR Context Restrictions

Neither the async API nor the blocking API can be called from interrupt context. Specifically:

• esp_async_crc_calc(): Involves memory allocation/free, DMA preparations, and logging functions that are not ISR-safe

• esp_crc_calc_blocking(): Uses synchronization primitives that may block

Callback Restrictions

The callback function (async_crc_isr_cb_t) is executed in interrupt context. Therefore:

• Do not perform blocking operations (e.g., vTaskDelay, xQueueSend with timeout)

• Keep execution time minimal to avoid impacting system interrupt latency

• Do not allocate memory using malloc or similar functions

• Use only ISR-safe FreeRTOS APIs (e.g., xQueueSendFromISR, xSemaphoreGiveFromISR)

• Return true if the callback wakes a high-priority task

Example of callback using queue:

static bool crc_callback(async_crc_handle_t crc_hdl, async_crc_event_data_t *edata, void *cb_args)
{
    QueueHandle_t queue = (QueueHandle_t)cb_args;
    BaseType_t high_task_awoken = pdFALSE;
    // Send result to a task via ISR-safe queue
    xQueueSendFromISR(queue, &edata->crc_result, &high_task_awoken);
    return high_task_awoken == pdTRUE;
}

Buffer Requirements

The Async CRC driver has specific requirements for data buffers.

Memory Type

Data buffers can be in internal memory (DRAM/IRAM) or external memory (PSRAM, Flash). The driver automatically handles both:

// Internal RAM
static char internal_data[] = "Data in internal RAM";
esp_async_crc_calc(crc_hdl, internal_data, strlen(internal_data), &params, callback, NULL);

// External Flash
static const char *flash_data = "Data in external Flash";
esp_async_crc_calc(crc_hdl, flash_data, strlen(flash_data), &params, callback, NULL);

Performance Considerations

Backlog Configuration

The backlog configuration affects performance:

• Small backlog (4-8): Lower memory usage, may cause backpressure under high load

• Large backlog (16+): Better throughput for bursty workloads, higher memory usage

Choose based on your application's memory constraints and workload pattern.

DMA Burst Size

The dma_burst_size affects DMA transfer efficiency:

• Larger burst sizes can improve throughput

• Typical values: 16, 32, 64 bytes

The optimal value depends on your chip's DMA controller capabilities.

API Reference

Async CRC Driver Functions

Header File

• components/esp_driver_dma/include/esp_async_crc.h

• This header file can be included with:

  #include "esp_async_crc.h"


• This header file is a part of the API provided by the esp_driver_dma component. To declare that your component depends on esp_driver_dma, add the following to your CMakeLists.txt:

  REQUIRES esp_driver_dma


  or

  PRIV_REQUIRES esp_driver_dma


Functions

esp_err_t esp_async_crc_uninstall(async_crc_handle_t crc_hdl)

Uninstall async CRC driver.

Parameters:

crc_hdl -- [in] Handle of async CRC driver that returned from install functions

Returns:

• ESP_OK: Uninstall async CRC driver successfully

• ESP_ERR_INVALID_ARG: Uninstall async CRC driver failed because of invalid argument

• ESP_FAIL: Uninstall async CRC driver failed because of other error

esp_err_t esp_async_crc_calc(async_crc_handle_t crc_hdl, const void *data, size_t size, const async_crc_params_t *params, async_crc_isr_cb_t cb_isr, void *cb_args)

Send an asynchronous CRC calculation request.

Note

The callback function is invoked in interrupt context, never do blocking jobs in the callback.

Parameters:

• crc_hdl -- [in] Handle of async CRC driver that returned from install functions

• data -- [in] Pointer to data buffer for CRC calculation

• size -- [in] Size of data in bytes

• params -- [in] CRC calculation parameters

• cb_isr -- [in] Callback function, which got invoked in interrupt context. Set to NULL can bypass the callback.

• cb_args -- [in] User defined argument to be passed to the callback function

Returns:

• ESP_OK: Send CRC calculation request successfully

• ESP_ERR_INVALID_ARG: Send CRC calculation request failed because of invalid argument

• ESP_ERR_INVALID_STATE: CRC driver is not in proper state to accept new requests

• ESP_FAIL: Send CRC calculation request failed because of other error

esp_err_t esp_crc_calc_blocking(async_crc_handle_t crc_hdl, const void *data, size_t size, const async_crc_params_t *params, int32_t timeout_ms, uint32_t *result)

Blocking CRC calculation function with timeout.

Note

This function is blocking and should not be called from interrupt context.

Parameters:

• crc_hdl -- [in] Handle of async CRC driver that returned from install functions

• data -- [in] Pointer to data buffer for CRC calculation

• size -- [in] Size of data in bytes

• params -- [in] CRC calculation parameters

• timeout_ms -- [in] Timeout in milliseconds:

  • < 0: Wait forever (no timeout)

  • 0: Return immediately (poll once)

  • > 0: Wait up to specified milliseconds

• result -- [out] Pointer to store CRC calculation result

Returns:

• ESP_OK: Calculate CRC successfully

• ESP_ERR_INVALID_ARG: Calculate CRC failed because of invalid argument

• ESP_ERR_INVALID_STATE: Function called from ISR context or driver in invalid state

• ESP_ERR_TIMEOUT: Operation timed out

• ESP_FAIL: Calculate CRC failed because of other error

Structures

struct async_crc_event_data_t

Async CRC event data.

Public Members

uint32_t crc_result

CRC calculation result

struct async_crc_config_t

Type of async CRC configuration.

Public Members

uint32_t backlog

Maximum number of pending CRC requests that can be queued per driver instance. Higher values use more memory but provide better throughput for bursty workloads.

size_t dma_burst_size

DMA transfer burst size, in bytes

struct async_crc_params_t

CRC calculation parameters.

Public Members

uint8_t width

CRC bit width: 8, 16, or 32 bits

uint32_t polynomial

CRC polynomial

uint32_t init_value

Initial CRC value

uint32_t final_xor_value

Final XOR value

bool reverse_input

Reverse data bits before processing

bool reverse_output

Reverse final CRC result

Type Definitions

typedef struct async_crc_context_t *async_crc_handle_t

Async CRC driver handle.

typedef bool (*async_crc_isr_cb_t)(async_crc_handle_t crc_hdl, async_crc_event_data_t *edata, void *cb_args)

Type of async CRC interrupt callback function.

Note

User can call OS primitives (semaphore, mutex, etc) in the callback function. Keep in mind, if any OS primitive wakes high priority task up, the callback should return true.

Note

This callback function is invoked in interrupt context (ISR). The following restrictions apply:

• Do not perform blocking operations (e.g., vTaskDelay, xQueueSend with non-zero timeout)

• Keep execution time minimal to avoid impacting system interrupt latency

• Avoid calling non-ISR-safe FreeRTOS functions

• Do not allocate memory or perform heavy computations

• Use only ISR-safe APIs (xQueueSendFromISR, xSemaphoreGiveFromISR, etc.)

Param crc_hdl:

Handle of async CRC

Param edata:

Event data object, which contains related data for this event

Param cb_args:

User defined arguments, passed from esp_async_crc_calc function

Return:

Whether a high priority task is woken up by the callback function

---

Was this page helpful?

• Thank you! We received your feedback.
• If you have any comments, fill in Espressif Documentation Feedback Form.

• We value your feedback.
• Let us know how we can improve this page by filling in Espressif Documentation Feedback Form.
