Migrating from Espressif-IDE to the ESP-IDF VS Code Extension

A practical migration guide for existing Espressif-IDE / ESP-IDF Eclipse Plugin users.

Espressif-IDE 4.5.0 is the final feature release of Espressif-IDE and the ESP-IDF Eclipse plugin. Existing users can continue to maintain current projects, but new projects are encouraged to use the ESP-IDF VS Code Extension.

This guide shows how to open an existing ESP-IDF project in VS Code and reproduce the workflows you already know from Espressif-IDE: configure, build, flash, monitor, and debug.

What to expect

You do not need to recreate your ESP-IDF project.

Most project-level ESP-IDF configuration is portable and can be reused directly in VS Code. The parts that may need manual attention are mainly IDE-specific settings stored by Eclipse outside the project itself.

Usually reusable without changes

Source code and CMakeLists.txt
sdkconfig and sdkconfig.defaults*
dependencies.lock
idf_component.yml
Managed components
Local/custom components

May require manual setup

Custom build directory
JTAG / OpenOCD board configuration
Adapter-specific settings
VS Code debug configuration (.vscode/launch.json)
Custom debug values from Eclipse .launch files
Environment-specific build cache

Important

Keep the original Eclipse workspace, including its .metadata directory, until Build, Flash, Monitor, and Debug have all been verified in VS Code. Some Eclipse-specific settings are stored in the workspace rather than in the project directory.

Eclipse to VS Code: quick reference

Task	Espressif-IDE / Eclipse Plugin	ESP-IDF VS Code Extension
Open project	Import/open project in an Eclipse workspace	File → Open Folder…
Select target	Project/toolbar target configuration	ESP-IDF target/device selection from the status bar or Command Palette
Select flash method	Eclipse launch/flash configuration	Select UART or JTAG in the ESP-IDF status bar/settings
Select port	Serial configuration	Select the device port from the ESP-IDF status bar
Full Clean	Clean/reconfigure project	ESP-IDF: Full Clean
Build	Build toolbar / CDT Build	ESP-IDF: Build your project
Menuconfig	ESP-IDF SDK Configuration Editor	ESP-IDF: SDK Configuration Editor (Menuconfig)
Flash	Serial/JTAG flash action	ESP-IDF: Flash your project
Monitor	Serial Monitor	ESP-IDF: Monitor your device
Debug	Eclipse `.launch` configuration	Generate `.vscode` config if needed, then start Debug

Familiar controls, different locations

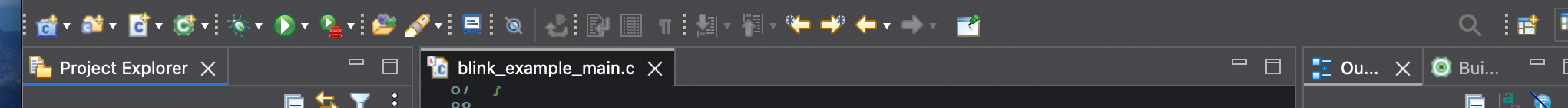

Espressif-IDE provides common project actions through the Eclipse toolbar:

In VS Code, equivalent actions are available through the ESP-IDF status bar, Command Palette, and Run and Debug view:

Optional: AI-assisted migration

If your AI coding agent supports AGENTS.md, download the migration AGENTS.md and place it in the root of your ESP-IDF project.

It provides migration-specific instructions for inspecting the existing project and Eclipse workspace metadata, then migrating supported build, JTAG/OpenOCD, and debug settings to their VS Code equivalents.

You can start with a simple prompt:

Migrate this existing Espressif-IDE project to the ESP-IDF VS Code Extension.

The agent should apply settings automatically when the mapping is unambiguous and report only what still requires manual review. Actions that modify a connected device, such as flashing firmware, should require user confirmation.
