ESP-IDF Application Size Analysis

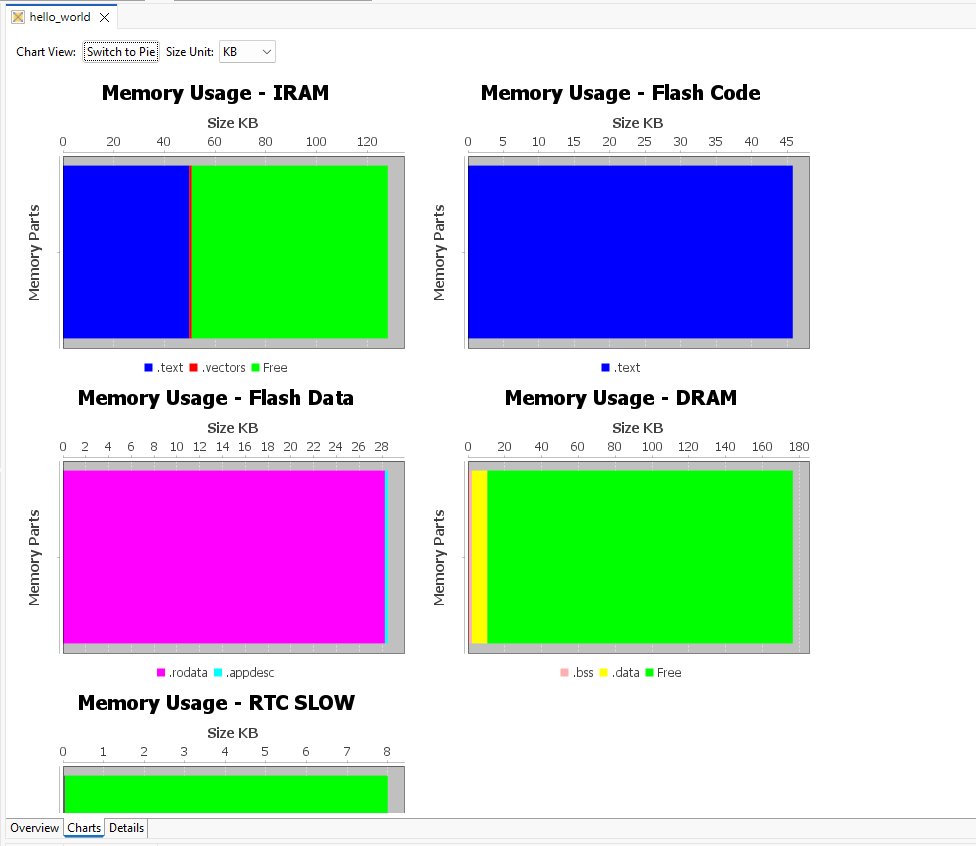

The Application Size Analysis editor provides a way to analyze the static memory footprint of your application. It has two sections:

• The Overview section provides a summary of the application’s memory usage;

• The Details section includes in-depth details about components and per-symbol level memory information.

The Details table viewer also provides searching and sorting capabilities on various columns.

To launch the Application Size Analysis editor:

1. Right-click on the project.

2. Select ESP-IDF > Application Size Analysis menu option to launch the editor.

Application Size Analysis - Overview

Application Size Analysis - Details
