ESP-IDF Chat Commands

This feature lets you run ESP-IDF commands directly from the VS Code chat window. Instead of typing terminal commands, you can simply ask in chat - and the tool will execute common ESP-IDF actions for you, like building, flashing, or monitoring your project.

Available Commands

The tool supports the following ESP-IDF commands:

Command Parameters

Some commands support additional parameters to customize their behavior:

  • target - Specifies the ESP32 target device (for setTarget command). Supported values: esp32, esp32s2, esp32s3, esp32c3, esp32c6, esp32h2, esp32p4, esp32c2, esp32c5, esp32c61, esp32h21, esp32h4, linux

  • partitionToUse - Specifies which partition to build or flash (for build, flash, and buildFlashMonitor commands). Supported values: app, bootloader, partition-table

  • flashType - Specifies the flash method to use (for flash and buildFlashMonitor commands). Supported values: UART, JTAG, DFU

Build and Flash Commands

  • build - Build the ESP-IDF project (espIdf.buildDevice) * Optional parameter: partitionToUse (app, bootloader, partition-table)

  • flash - Flash the built application to the device (espIdf.flashDevice) * Optional parameters: partitionToUse (app, bootloader, partition-table), flashType (UART, JTAG, DFU)

  • monitor - Monitor the device output (espIdf.monitorDevice)

  • buildFlashMonitor - Build, flash, and monitor the project in one command (espIdf.buildFlashMonitor) * Optional parameters: partitionToUse (app, bootloader, partition-table), flashType (UART, JTAG, DFU)

Project Management Commands

  • fullClean - Perform a full clean of the project (espIdf.fullClean)

  • menuconfig - Open the ESP-IDF menuconfig interface (espIdf.menuconfig.start)

  • size - Analyze the application size (espIdf.size)

  • eraseFlash - Erase the device flash memory (espIdf.eraseFlash)

Configuration Commands

  • selectPort - Select the serial port for communication (espIdf.selectPort)

  • setTarget - Set the ESP32 target device (espIdf.setTarget) * Optional parameter: target (esp32, esp32s2, esp32s3, esp32c3, esp32c6, esp32h2, esp32p4, esp32c2, esp32c5, esp32c61, esp32h21, esp32h4, linux)

  • doctor - Run the ESP-IDF doctor command to diagnose issues (espIdf.doctorCommand)

Development Commands

  • newProject - Create a new ESP-IDF project (espIdf.newProject.start)

  • partitionTable - Open the partition table editor (esp.webview.open.partition-table)

  • componentManager - Open the ESP component manager (esp.component-manager.ui.show)

  • apptrace - Start application tracing (espIdf.apptrace)

  • heaptrace - Start heap tracing (espIdf.heaptrace)

Usage

Press menu View > Chat to open the chat window.

You can type in the chat windows using natural language, and the tool will interpret your request to execute the appropriate ESP-IDF command.

Natural Language Patterns:

  • “build the project”

  • “flash the device”

  • “monitor the output”

  • “clean the project”

  • “configure the project”

  • “analyze size”

  • “erase flash”

  • “select port”

  • “set target to esp32c6”

  • “run doctor”

  • “create new project”

  • “edit partition table”

  • “manage components”

  • “start app trace”

  • “start heap trace”

You can alternatively type #espIdfCommands <tag> to invoke the command directly. Replace <tag> with one of the supported command tags from Available Commands.

Note

  • While the Chat can understand natural language, using the specific #espIdfCommands <tag> command format ensures accurate command execution.

  • The tool is designed to handle one command at a time. For multiple actions, please enter them separately.

  • Ensure your ESP-IDF environment is properly set up in VS Code for the commands to work correctly. Review the documentation to Install ESP-IDF and Tools.

For example, to build the project, you can type:

build the project

#espIdfCommands build

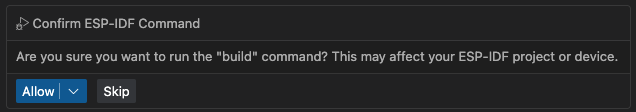

A dialog will appear to Confirm ESP-IDF Command. Click Allow to proceed.

Confirm ESP-IDF Command

The command will execute, and the output will be displayed in the terminal (if the command uses a terminal) and the chat window. Some commands may not produce output and launch a UI (like newProject).

Examples

Here are some examples of how to use the commands with parameters:

Setting Target:

  • “set target to esp32s3”

  • “#espIdfCommands setTarget esp32c6”

Building Specific Partitions:

  • “build partition-table”

  • “#espIdfCommands build bootloader”

  • “build bootloader”

  • “#espIdfCommands build partition-table”

Flashing with Different Methods:

  • “flash with UART”

  • “#espIdfCommands flash UART”

  • “flash with JTAG”

  • “#espIdfCommands flash JTAG”

  • “flash with DFU”

  • “#espIdfCommands flash DFU”

Combined Operations:

  • “build and flash app with UART”

  • “#espIdfCommands buildFlashMonitor app UART”

  • “build and flash bootloader with JTAG”

  • “#espIdfCommands buildFlashMonitor bootloader JTAG”

  • “build and flash partition table with DFU”

  • “#espIdfCommands buildFlashMonitor partition-table DFU”
